Same model may have multiple batches, images only for reference.

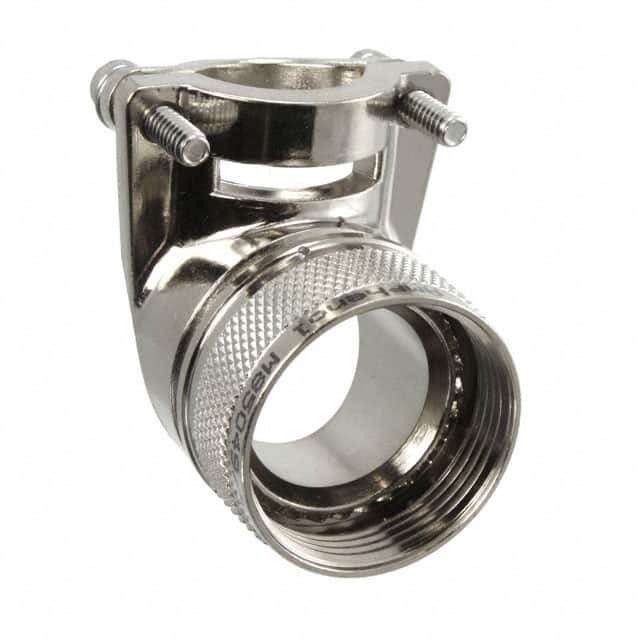

A8504951116N
Same model may have multiple batches, images only for reference.

A8504951116N

Part No A8504951116N
Manufacturer Amphenol
Catalog Circular Connectors - Backshells and Cable Clamps
Description CONN CABLE CLAMP SZ16 SIL 1-20
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Backshells and Cable Clamps
Mfr Amphenol
Series SAE AS85049
Package Bulk
Product Status Active
Type Cable Clamp
Cable Opening 0.500" ~ 0.630" (12.70mm ~ 16.00mm)
Diameter - Outside 1.110" (28.19mm)
Shell Size - Insert 16
Thread Size 1-20 UNEF
Cable Exit 90°
Material Aluminum Alloy
Plating Electroless Nickel
Color Silver
Features Clamp Screws
For Use With/Related Products MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III
Base Product Number M85049
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 925009-A8504951116N
Ultra Librarian 3D Model Ultra Librarian A8504951116N CAD Model

Description

The 925009-A8504951116N is a cable clamp backshell and cable clamp connector from the SAE AS85049 series.

  • Series: SAE AS85049
  • Connector Compatibility: MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, and MIL-DTL-83723 Series I, III connectors
  • Color: Silver
  • Features: Clamp Screws
  • Material: Aluminum Alloy
  • Plating: Electroless Nickel
  • Cable Opening Range: 0.500" to 0.630" (12.70mm to 16.00mm)
  • Diameter: 1.110" (28.19mm)
  • Thread Size: 1-20 UNEF
  • Cable Exit: 90° Angle
  • Product Status: Active
