Same model may have multiple batches, images only for reference.

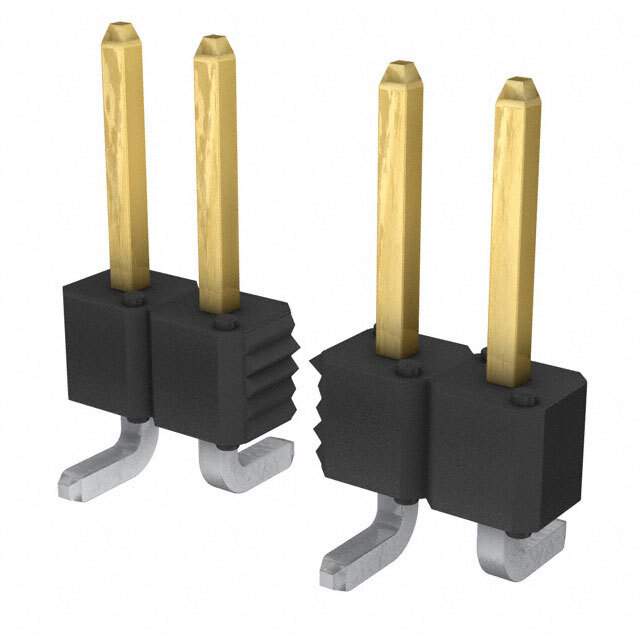

95293-101-09LF Real Image
Same model may have multiple batches, images only for reference.

95293-101-09LF

Part No 95293-101-09LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 9POS 2.54MM / Connector Header Surface Mount 9 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series BERGSTIK®
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 130°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 95293
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352282-95293-101-09LF
Ultra Librarian 3D Model Ultra Librarian 95293-101-09LF CAD Model

Description

This Amphenol ICC (FCI) BERGSTIK® connector is a rectangular connector with nine positions.

  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Number of Positions: 9
  • Number of Positions Loaded: All
  • Number of Rows: 1
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Packaging: Bulk
  • Contact Material: Phosphor Bronze
  • Contact Finish - Mating: Gold with GXT
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 78.7µin (2.00µm)
  • Insulation Material: Thermoplastic
  • Insulation Color: Black
  • Mounting Type: Surface Mount
  • Style: Unshrouded
  • Contact Shape: Square
  • Operating Temperature: -65°C ~ 130°C
  • Contact Length - Mating: 0.230" (5.84mm)
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • REACH: Affected
  • HTSUS: 8536.69.4040
