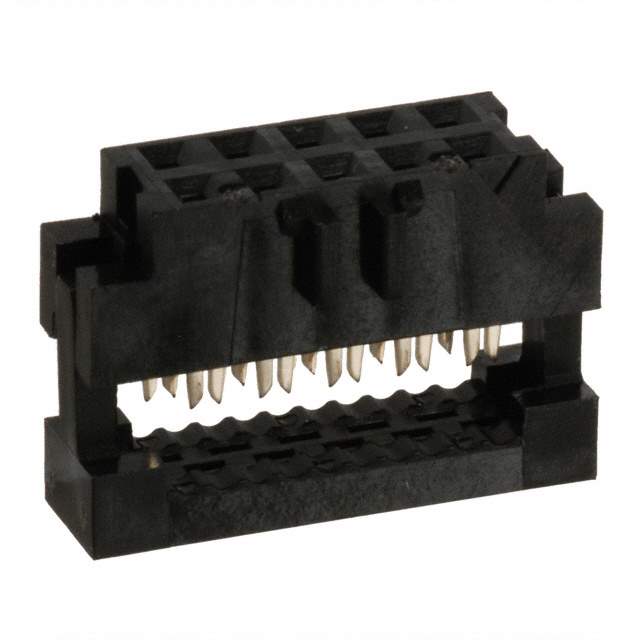

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr Amphenol ICC (FCI)
Series Minitek® 2.00mm
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Fastening Type Friction Lock
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Base Product Number 89947
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
California Prop 65 Warning Information
Win Source Part Number 1350434-89947-710LF
Ultra Librarian 3D Model Ultra Librarian 89947-710LF CAD Model

Description

This Amphenol ICC (FCI) Minitek 2.00mm connector is a rectangular connector with a feed-through and polarizing key feature.

  • Positions: 10
  • Pitch: 0.079" (2.00mm)
  • Color: Black
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Rows: 2
  • Fastening Type: Friction Lock
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tube
  • Wire Gauge: 28 AWG
  • Cable Termination: IDC
  • Wire Type: Ribbon Cable
  • Standard Package: 40
  • Mounting Type: Free Hanging (In-Line)
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4051
