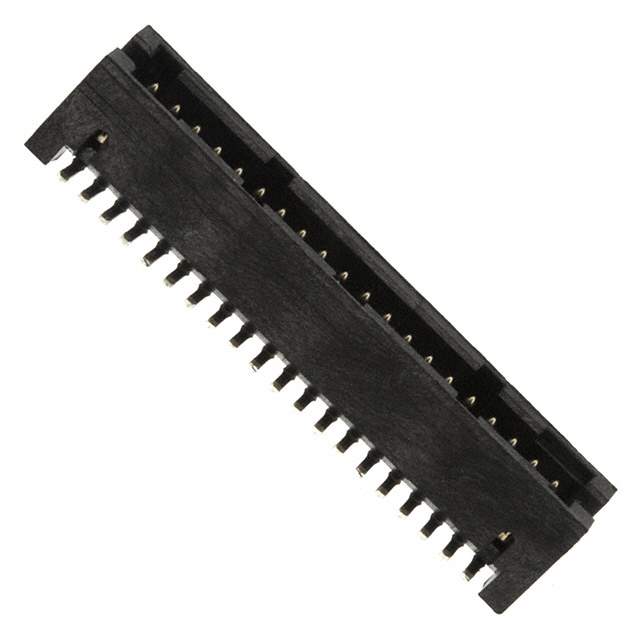

87409-120LF Real Image
Same model may have multiple batches, images only for reference.

87409-120LF

Part No 87409-120LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 40POS 1.27MM / Connector Header Surface Mount 40 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Rib-Cage™ III
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.226" (5.74mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Insulation Material Thermoplastic, Glass Filled
Features Board Guide
Temperature Range - Operating -55°C ~ 130°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A (DC)
Mated Stacking Heights 6.42mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Military
Base Product Number 87409
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 87409120LF,609-1555,2266-87409-120LF
Standard Package 21
Win Source Part Number 1177785-87409-120LF
Ultra Librarian 3D Model Ultra Librarian 87409-120LF CAD Model

Description

The Amphenol ICC Rib-Cage III 87409-120LF is a male pin header connector with a 40-position and 2-row configuration.

  • Positions: 40
  • Rows: 2
  • Board Guide: Yes
  • Positions Loaded: All
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Mating Cycle: 200
  • Rated Current: 1A (DC)
  • Applications: General Purpose, Military
  • Series: Rib-Cage III
  • Mated Stacking Height: 6.42mm
  • Package: Tube
  • Standard Package Quantity: 21
  • Shrouding: Shrouded 4-Wall
  • Insulation Color: Natural
  • Pitch: 0.050 inches (1.27mm)
  • Contact Finish Mating: Gold or Gold GXT
  • Temperature Range: -55°C to 130°C
