Same model may have multiple batches, images only for reference.

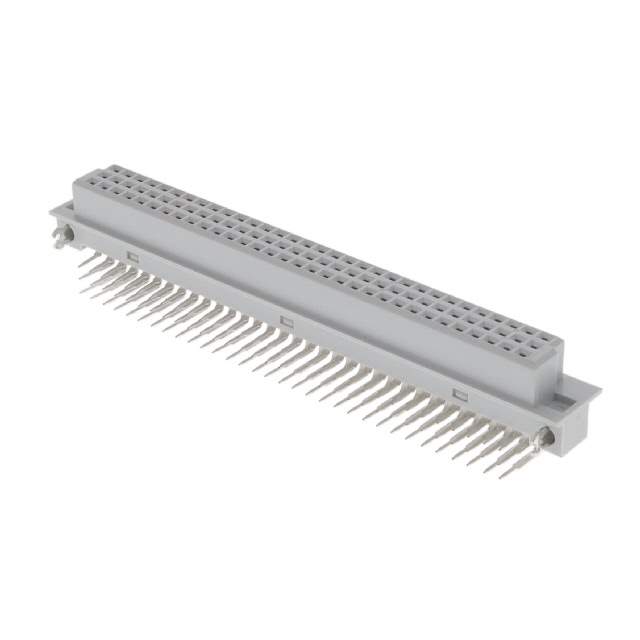

86093968813H55V1LF Real Image
Same model may have multiple batches, images only for reference.

86093968813H55V1LF

Part No 86093968813H55V1LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN DIN RCPT 96POS PCB RA GOLD / 96 Position Din Connector Receptacle, Female Sockets Gold, GXT™ Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Amphenol ICC (FCI)
Series 8609
Package Tray
Connector Type Receptacle, Female Sockets
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style R
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold, GXT™
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Base Product Number 8609396881
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-6086,86093968813H55V1LF-ND,2266-86093968813H55V1LF
Standard Package 16
Win Source Part Number 1011937-86093968813H55V1LF
Ultra Librarian 3D Model Ultra Librarian 86093968813H55V1LF CAD Model

Description

The Amphenol ICC (FCI) 8609 series connector is a reliable and efficient connector designed for use in backplane connections.

  • Feature: Board Lock
  • Connector Type: Receptacle, Female Sockets
  • Positions Loaded: All
  • Mounting: Through Hole, Right Angle
  • Temperature Range: -55°C to 125°C
