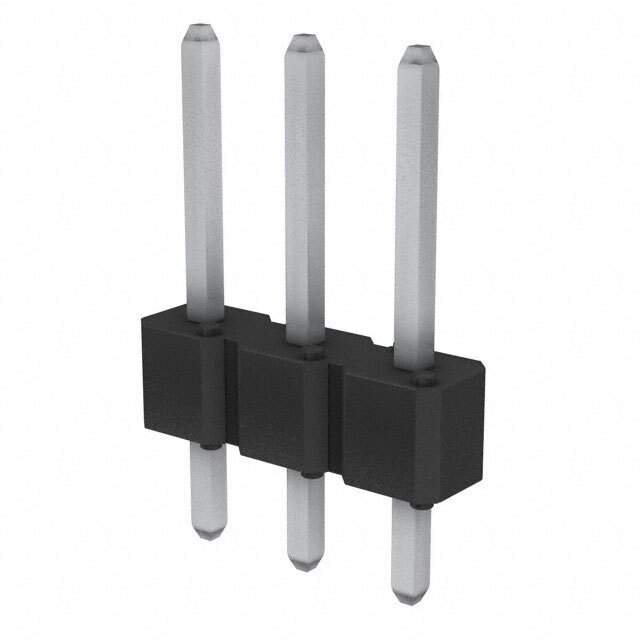

Same model may have multiple batches, images only for reference.

77311-424-03LF

Name: 77311-424-03LF
Brand: Amphenol
SKU: 983266
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	77311-424-03LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK®
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.480" (12.19mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	78.7µin (2.00µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	77311
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	77311-424-03LF-ND,2266-77311-424-03LF,609-77311-424-03LF
Standard Package	1,000
Win Source Part Number	983266-77311-424-03LF
Ultra Librarian 3D Model	Ultra Librarian 77311-424-03LF CAD Model

Description

The Amphenol ICC (FCI) 77311-424-03LF is a male pin header connector with a pitch of 0.100" (2.54mm).

Pitch: 0.100" (2.54mm)
Positions: 3
Application: Board to Board Connections
Termination: Solder
Fastening Type: Push-Pull
Package: Bulk
Mounting: Through-Hole
Insulation Material: Thermoplastic
Insulation Color: Black
Operating Temperature: -65°C to 125°C
Current Rating: 3A per contact
