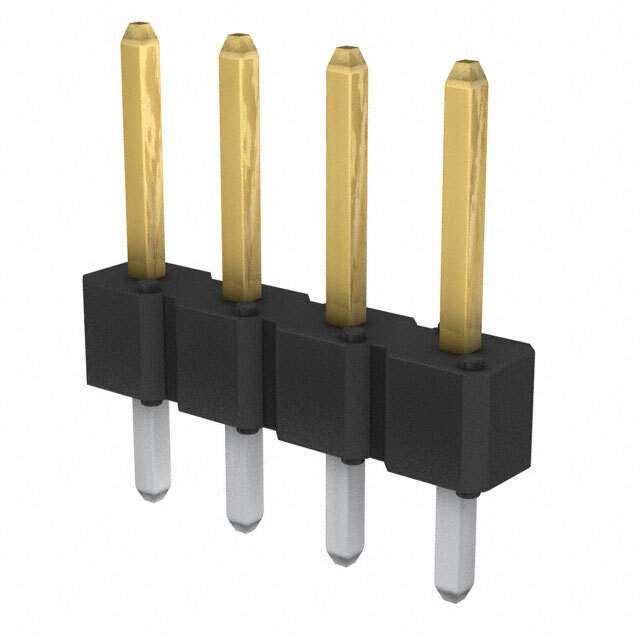

Same model may have multiple batches, images only for reference.

77311-118-04LF

Name: 77311-118-04LF
Brand: Amphenol
SKU: 1184520
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	77311-118-04LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK®
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	77311
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	77311-118-04LF-ND,2266-77311-118-04LF,609-5681
Standard Package	1,000
Win Source Part Number	1184520-77311-118-04LF
Ultra Librarian 3D Model	Ultra Librarian 77311-118-04LF CAD Model

Alternative Products

Description

The BERGSTIK 77311-118-04LF is a 4-position, board-to-board header connector manufactured by Amphenol ICC (FCI).

Pitch: 0.100" (2.54mm)
Mounting Type: Through-Hole
Mating Contacts: Gold or Gold GXT™
Post Finish: Tin
Flammability Rating: UL94 V-0
Applications: Computer peripherals, medical equipment, and industrial controls.
