Same model may have multiple batches, images only for reference.

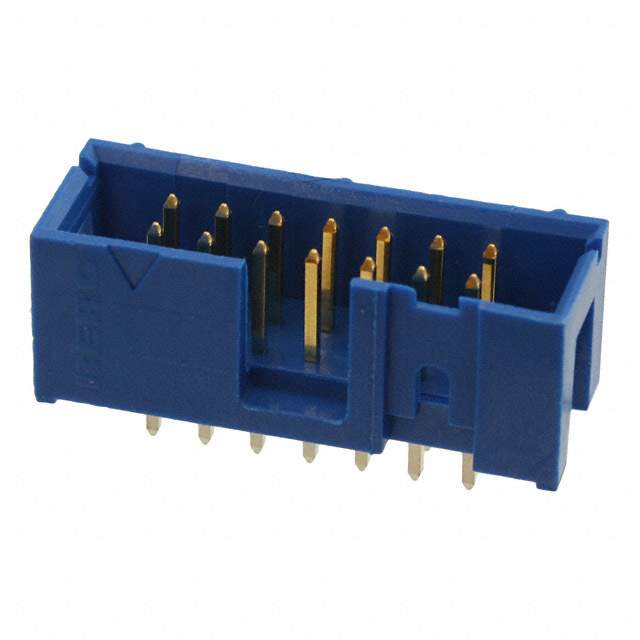

75869-102LF Real Image
Same model may have multiple batches, images only for reference.

75869-102LF

Part No 75869-102LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.377" (9.57mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Blue
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 75869
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 75869102LF,609-4503,75869-102LF-ND
Standard Package 23
Win Source Part Number 1196096-75869-102LF
Ultra Librarian 3D Model Ultra Librarian 75869-102LF CAD Model

Description

The Amphenol ICC Quickie 75869-102LF is a male pin header connector with a 14-position and 2-row configuration manufactured by Amphenol ICC.

  • Positions: 14
  • Rows: 2
  • Keying: Keying Slot
  • Loading: Loaded all
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Series: Quickie
  • Mounting Type: Through-Hole
  • Design: Shrouded 4-Wall
  • Package: Tube
  • Package Quantity: 23
  • Pitch: 0.100 inches (2.54mm)
  • Insulation Color: Blue
  • Temperature Range: Not specified
