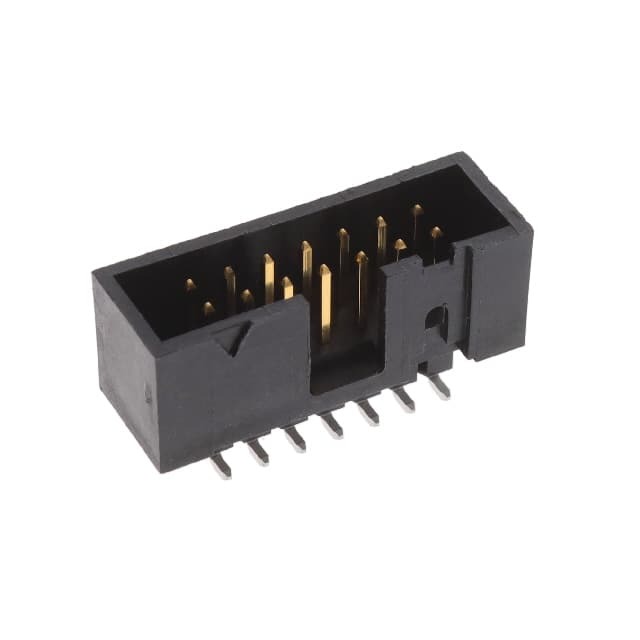

72454-014VLF
Same model may have multiple batches, images only for reference.

72454-014VLF

Part No 72454-014VLF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 14POS 2.54MM / Connector Header Surface Mount 14 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol
Series Quickie™
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.365" (9.27mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Features Keying Slot, Pick and Place
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 72454
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 857117-72454-014VLF
Ultra Librarian 3D Model Ultra Librarian 72454-014VLF CAD Model

Description

The 857117-72454-014VLF is a male pin header connector from the Quickie™ series by Amphenol.

  • Series: Quickie™
  • Positions: 14
  • Features: Keying Slot, Pick and Place
  • Application: Board to Cable/Wire
  • Pitch: 0.100" (2.54mm)
  • Rows: 2
  • All Positions Loaded: Yes
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Packaging: Tape & Reel
  • Standard Package: 200 pieces
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold, 30.0µin (0.76µm)
  • Contact Finish (Post): Tin, 78.7µin (2.00µm)
  • Color: Black
  • Design: Shrouded 4-Wall
  • Operating Temperature: -65°C to 105°C
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
