Same model may have multiple batches, images only for reference.

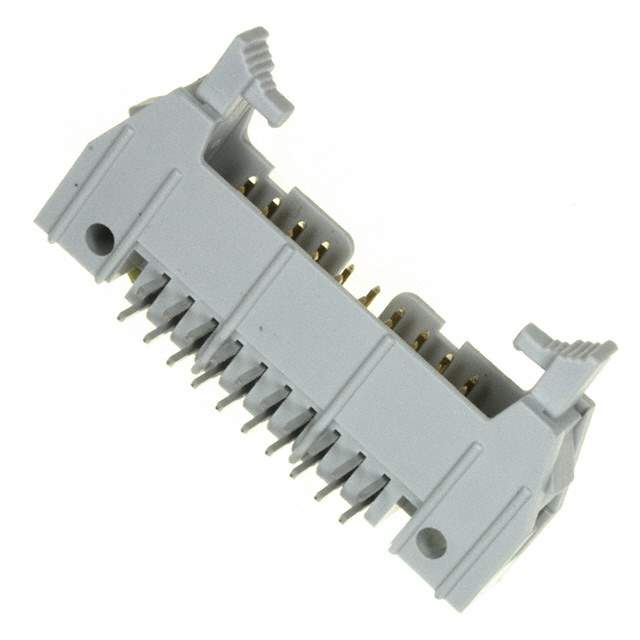

71922-220LF Real Image
Same model may have multiple batches, images only for reference.

71922-220LF

Part No 71922-220LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2.54MM / Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot, Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Gray
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 71922
Standard Package 11
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349818-71922-220LF
Ultra Librarian 3D Model Ultra Librarian 71922-220LF CAD Model

Description

The Amphenol ICC (FCI) 1349818-71922-220LF is a 20 position Quickie™ series male pin header connector.

  • Series: Quickie™
  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Application: Board-to-Cable/Wire
  • Insulation Material: Thermoplastic, Glass-Filled
  • Insulation Color: Gray
  • Contact Finish: Gold, GXT™
  • Contact Finish Thickness (Mating): 30.0μin (0.76μm)
  • Contact Finish Thickness (Post): 78.7μin (2.00μm)
  • Mounting Type: Through-Hole, Right-Angle
  • Shrouding: Shrouded 4 Wall
  • Operating Temperature: Not Specified
