Same model may have multiple batches, images only for reference.

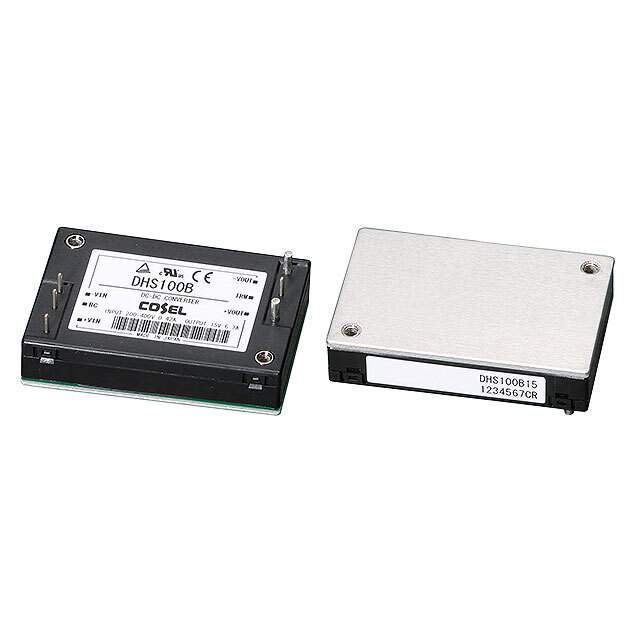

DHS100B28 Real Image
Same model may have multiple batches, images only for reference.

DHS100B28

Part No DHS100B28
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 28V / Isolated Module DC DC Converter 1 Output 28V 3.6A 200V - 400V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series DHS (100W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 200V
Voltage - Input (Max) 400V
Voltage - Output 1 28V
Current - Output (Max) 3.6A
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm)
Base Product Number DHS100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-1202
Standard Package 1
Win Source Part Number 1031578-DHS100B28
Ultra Librarian 3D Model Ultra Librarian DHS100B28 CAD Model

Description

The DHS100B28 is a 100W isolated module DC-DC converter that comes with a single output channel.

  • Power: 100W
  • Output Channels: Single
  • Application: Power supplies for board mount DC-DC converters
  • Series: DHS
  • Voltage Isolation: 3kV
  • Package: 6-DIP module
  • Operating Temperature: -40°C to 100°C with derating
