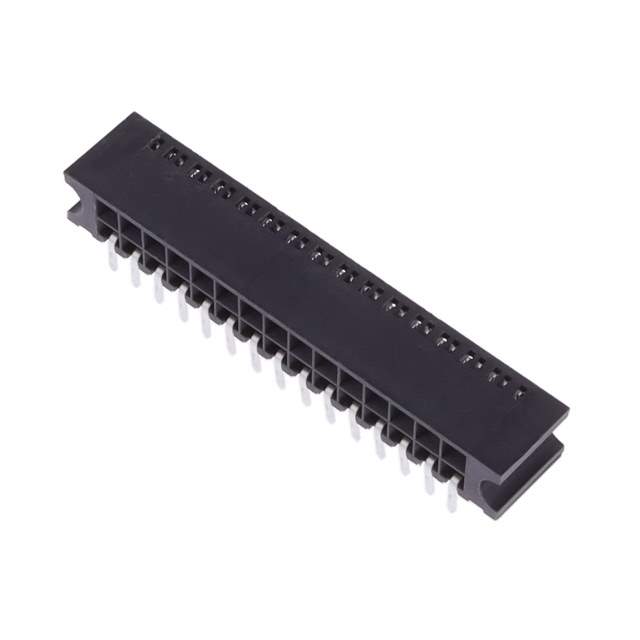

66527-015LF

Name: 66527-015LF
Brand: Amphenol
SKU: 970652
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	66527-015LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN RCPT 30POS 0.1 GOLD PCB R/A / 30 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Amphenol ICC (FCI)
Series	Dubox™
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.240" (6.10mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	1250V
Applications	Automotive, General Purpose, Industrial, Telecommunications
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Contact Shape	Square
Contact Material	Brass
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	66527
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	66527-015LF-ND,609-66527-015LF
Standard Package	13
Win Source Part Number	970652-66527-015LF
Ultra Librarian 3D Model	Ultra Librarian 66527-015LF CAD Model

Alternative Products

Description

This Dubox™ receptacle connector is a rectangular connector with 30 positions and two rows.

Positions: 30
Rows: 2
Application: Board-to-board
Industries: Automotive, industrial, telecommunications, and general-purpose
Insulation Material: Polyamide and nylon
Insulation Material Construction: Glass-filled
Pitch: 0.100" (2.54mm)
Contact Finish Mating: Gold
Contact Finish Thickness Mating: 30.0µin (0.76µm)
Contact Finish Post: Tin
Contact Type: Female Socket
Contact Material: Brass
Contact Shape: Square
Current Rating: Unspecified Amperage
Voltage Rating: 1250V
Temperature Range: -65°C to 125°C
Flammability Rating: UL94 V-0
Mounting: Through Hole and Right Angle
Fastening Type: Push-Pull
Package: Tube
Standard Package: 13
