Same model may have multiple batches, images only for reference.

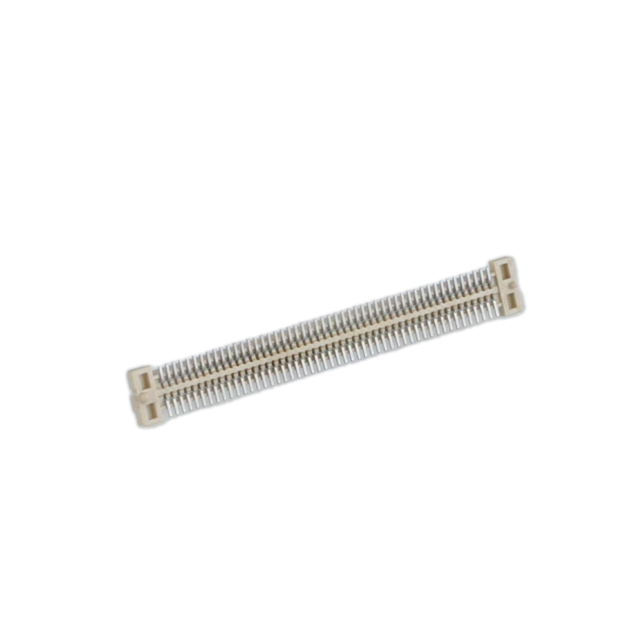

61082-101400LF Real Image
Same model may have multiple batches, images only for reference.

61082-101400LF

Part No 61082-101400LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 100POS SMD GOLD / 100 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Amphenol ICC (FCI)
Series BergStak® 0.80mm
Package Tube
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 100
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm, 6mm, 7mm, 8mm
Height Above Board 0.146" (3.70mm)
Base Product Number 61082
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 61082-101400LF-ND,609-5939,2266-61082-101400LF
Standard Package 10
Win Source Part Number 1184848-61082-101400LF
Ultra Librarian 3D Model Ultra Librarian 61082-101400LF CAD Model

Description

The 1184848-61082-101400LF is a rectangular connector array from the BergStak® 0.80mm series.

  • Series: BergStak® 0.80mm
  • Positions: 100
  • Pitch: 0.031 inches (0.80mm)
  • Type: Outer Shroud Receptacle
  • Features: Board Guides
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Tube
  • Height Above Board: 0.146 inches (3.70mm)
  • Mounting Type: SMD (SMT)
  • Mated Stacking Height: 5mm, 6mm, 7mm, and 8mm
  • REACH: Affected
  • ECCN: EAR99
  • Manufacturer: Amphenol ICC (FCI)
  • Other Names: 61082-101400LF-ND, 609-5939, 2266-61082-101400LF
