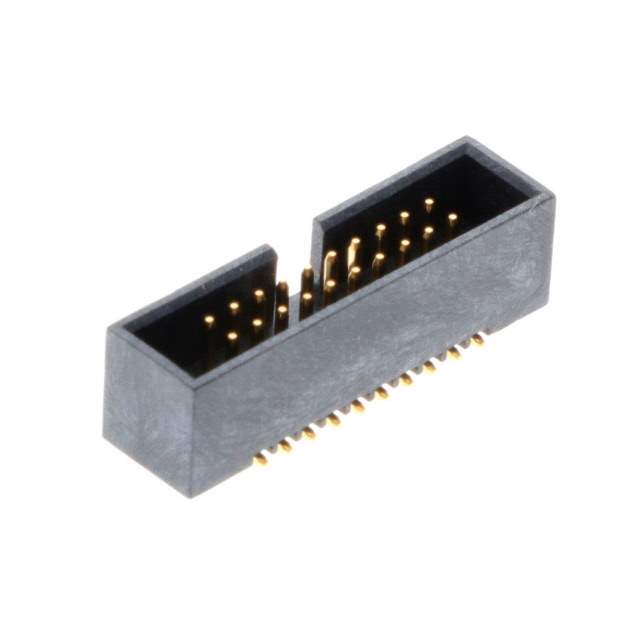

Same model may have multiple batches, images only for reference.

20021521-00020T4LF

Name: 20021521-00020T4LF
Brand: Amphenol
SKU: 1205906
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	20021521-00020T4LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Minitek127® 20021521
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Material	Copper Alloy
Insulation Material	Plastic
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	125VAC
Base Product Number	20021521
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-5932,20021521-00020T4LF-ND
Standard Package	14
Win Source Part Number	1205906-20021521-00020T4LF
Ultra Librarian 3D Model	Ultra Librarian 20021521-00020T4LF CAD Model

Description

The Minitek127® 20021521 male pin header is a high-quality connector designed for use in electronic equipment where space is at a premium.

Pitch: 0.050" (1.27mm)
Number of Positions: 20
Application: board-to-cable/wire
Contact Material: copper alloy
Contact Plating: gold
Voltage Rating: 125VAC
Current Rating: 1A per contact
Features: keying slot
RoHS Compliant: Yes
Packaging: tube
Series: Minitek127®
Manufacturer: [Unknown - No specific manufacturer mentioned, but this information is implicit from the series name Minitek127 ]
