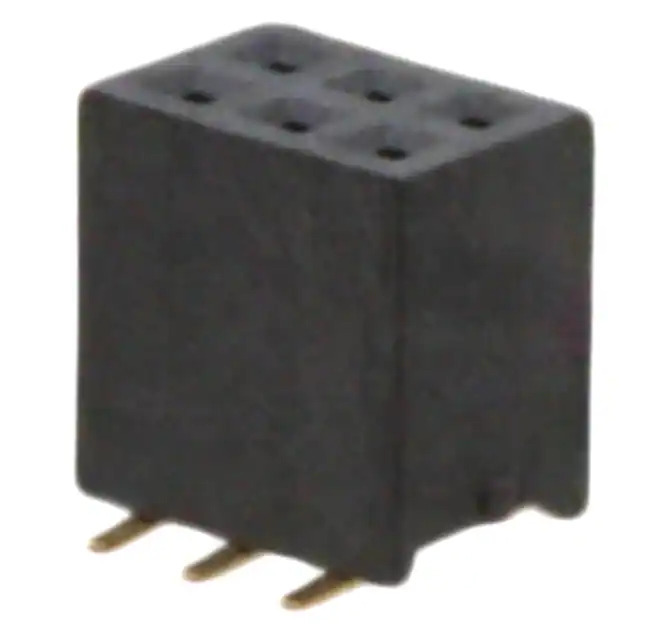

The Amphenol ICC (FCI) Minitek127® 1.27mm receptacle is a surface mount connector with a pitch of 0.050" (1.27mm).

• Positions/Rows: It is a 6-position, 2-row connector with a push-pull fastening type.
• Contact Material: The female socket contacts are made of phosphor bronze and have a gold finish for reliable connections.
• Insulation Height: The receptacle has an insulation height of 0.177" (4.50mm)
• Contact Finish Thickness: and a contact finish thickness of 10.0µin (0.25µm).
• Applications: It is suitable for board to board connections in general purpose, industrial, and telecommunications applications.
• Compliance: The receptacle is RoHS compliant and has a flammability rating of UL94 V-0.
• Packaging: It comes in a tape & reel package for easy handling and pick and place assembly.
