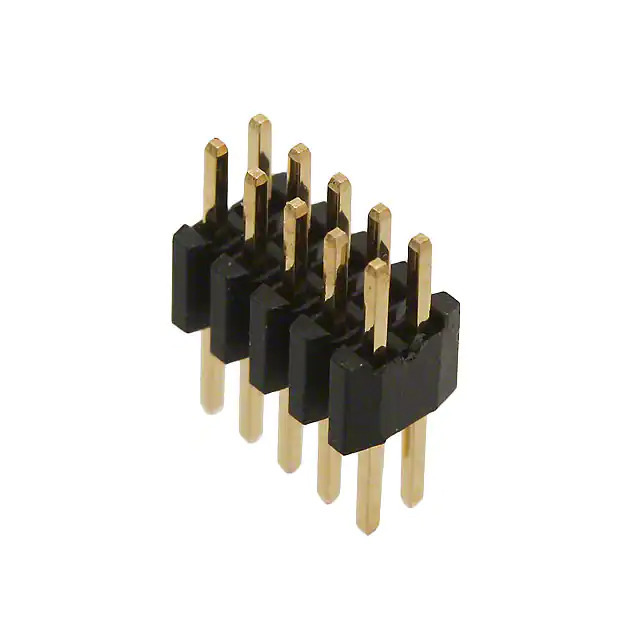

20021111-00010T4LF Amphenol
Same model may have multiple batches, images only for reference.

20021111-00010T4LF

Part No 20021111-00010T4LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 1.27MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Minitek127® 1.27mm
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.091" (2.30mm)
Overall Contact Length 0.309" (7.86mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features -
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 125VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 50.0µin (1.27µm)
Applications -
Base Product Number 20021111
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365996-20021111-00010T4LF
Ultra Librarian 3D Model Ultra Librarian 20021111-00010T4LF CAD Model

Description

The 1365996-20021111-00010T4LF is a 10-position, 2-row header connector manufactured by Amphenol ICC (FCI).

  • Series: Minitek127® 1.27mm
  • Mounting Type: Through-Hole
  • Package: Tube
  • Current Rating: 1A per contact
  • Pitch for Mating: 0.050" (1.27mm)
  • Row Spacing for Mating: 0.050" (1.27mm)
  • Shrouding: Unshrouded
  • Fastening Type: Push-Pull
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Contact Material: Copper Alloy
