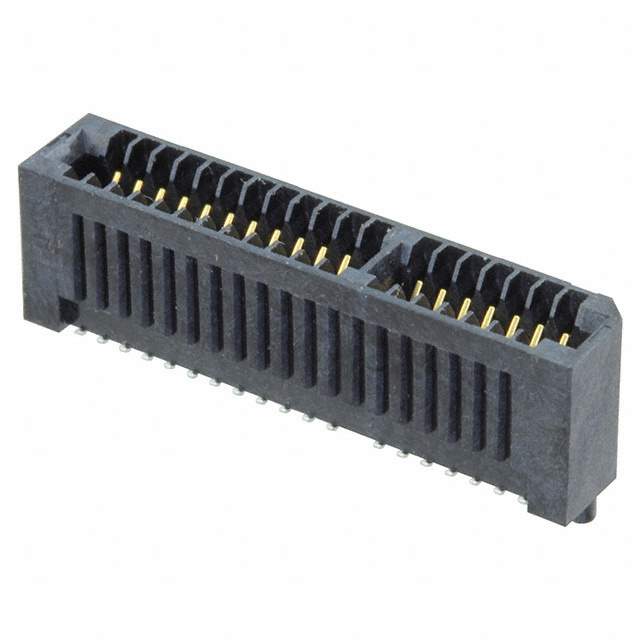

MECF-20-01-L-DV

Name: MECF-20-01-L-DV
Brand: Samtec Inc.
SKU: 1078530
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MECF-20-01-L-DV
Manufacturer	Samtec Inc.
Catalog	Card Edge Connectors - Edgeboard Connectors
Description	CONN EDGE DUAL FMALE 40POS 0.05 / 40 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black
Datasheet	MECF-20-01-L-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr	Samtec Inc.
Series	MECF
Package	Tube
Card Type	Non Specified - Dual Edge
Gender	Female
Number of Positions/Bay/Row	20
Number of Positions	40
Card Thickness	0.062" (1.57mm)
Number of Rows	2
Pitch	0.050" (1.27mm)
Read Out	Dual
Features	Board Guide
Mounting	SMD (SMT)
Termination	Solder
Contact Material	Beryllium Copper
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Type	Cantilever
Color	Black
Temperature Range - Operating	-55°C ~ 125°C
Material - Insulation	Liquid Crystal Polymer (LCP)
Base Product Number	MECF-20
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM11497,MECF-20-01-L-DV-ND
Standard Package	19
Win Source Part Number	1078530-MECF-20-01-L-DV
Ultra Librarian 3D Model	Ultra Librarian MECF-20-01-L-DV CAD Model

Alternative Products

Description

The MECF series connector is a card edge connector with 40 positions.

Positions: 40
Pitch: 0.050" (1.27mm)
Rows: 2
Contact Type: Cantilever
Contact Finish: Gold
Contact Finish Thickness: 10.0µin
Contact Material: Beryllium Copper
Insulation Material: Liquid Crystal Polymer (LCP)
Package: Tube
Mounting Type: Through Hole
Card Type: Non-Specified Dual Edge
Temperature Range: -55°C ~ 125°C
