Same model may have multiple batches, images only for reference.

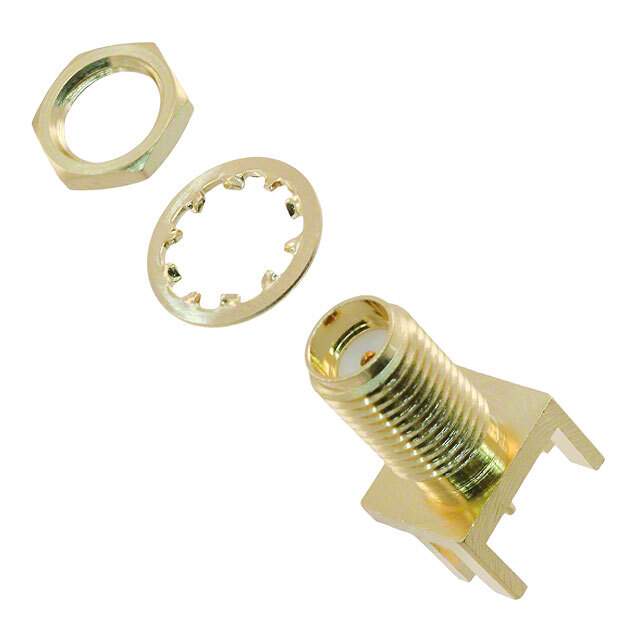

132289 Real Image
Same model may have multiple batches, images only for reference.

132289

Part No 132289
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN SMA RCPT STR 50OHM EDGE MNT
Datasheet
132289 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 19 Weeks
Features SMA Connector Receptacle, Female Socket 50Ohm Board Edge, End Launch; Panel Mount Solder
Manufacturer AMPHENOL
Package Bulk
Operating Temperature Range -65°C ~ 165°C
Mounting Board Edge, End Launch; Panel Mount
Family Name 1322
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number ACX1426, 2266-132289
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905275-132289
Ultra Librarian 3D Model Ultra Librarian 132289 CAD Model

Description

The Amphenol 905275-132289 is a high popularity SMA connector receptacle that is ideal for use in various electronic devices.

  • Win Source Part Number: 905275-132289
  • Family Name: 1322
  • Connector Type: Female Socket
  • Impedance: 50Ohm
  • Mounting: Board Edge and End Launch
  • Mounting Type: Panel Mount Solder and Board Edge End Launch
  • Supply and Demand Status: Balanced
  • Packaging: Bulk
  • Quantity per Package: 1
  • RoHS Compliant: Yes
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 19 weeks
  • HTSUS: 8536.69.4010
  • Other Part Numbers: ACX1426 and 2266-132289
