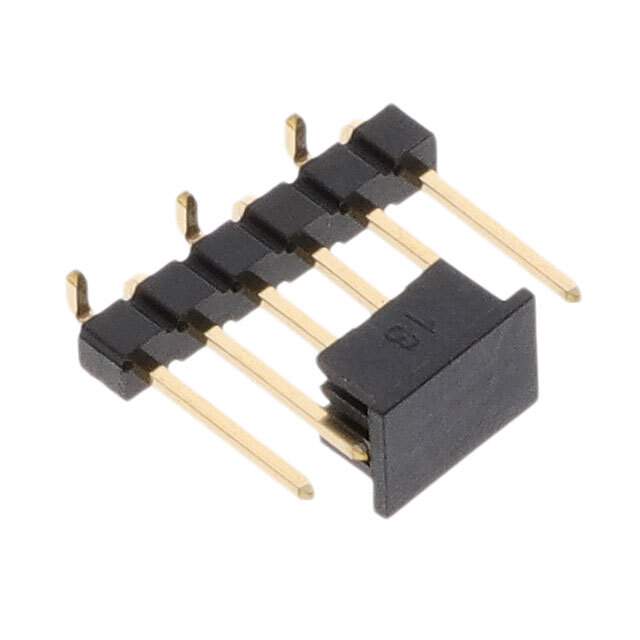

Same model may have multiple batches, images only for reference.

10129380-906002ALF

Name: 10129380-906002ALF
Brand: Amphenol
SKU: 976960
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	10129380-906002ALF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 2.54MM / Connector Header Surface Mount 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	EconoStik™ 10129380
Package	Tape & Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.00µin (0.025µm)
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	110VDC
Applications	General Purpose, Industrial, Medical, Telecommunications
Base Product Number	10129380
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-10129380-906002ALFCT,10129380-906002ALF-ND,609-10129380-906002ALFTR,609-10129380-906002ALFDKR
Standard Package	150
Win Source Part Number	976960-10129380-906002ALF
Ultra Librarian 3D Model	Ultra Librarian 10129380-906002ALF CAD Model

Description

The Amphenol ICC (FCI) EconoStik™ 10129380 series male pin header connector is an ideal choice for rectangular connectors - headers, male pins.

Positions: 6
Rows: 1
Positions Loaded: All
Termination: Soldered
Fastening: push-pull
Insulation Material: thermoplastic
Contact Material: copper alloy
Material Flammability Rating: UL94 V-0
Voltage: 110VDC
Temperature Range: -55°C to 105°C
Shrouded: Unshrouded
Pitch-Mating: 0.100" (2.54mm)
Contact Shape: square
Contact Length: 0.318" (8.08mm)
Connection Style: board to board or cable
Package: tape & reel
Standard Package: 150
