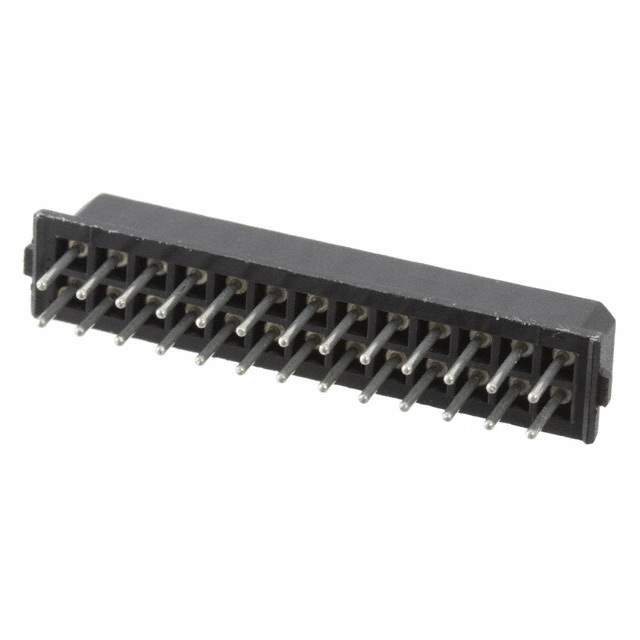

M80-8872601

Name: M80-8872601
Brand: Harwin Inc.
SKU: 1332646
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M80-8872601
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 26POS 0.079 GOLD PCB / 26 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	M80-8872601 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	26
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12.0µin (0.30µm)
Insulation Color	Black
Insulation Height	0.202" (5.14mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin-Lead
Mated Stacking Heights	7.23mm, 7.85mm
Voltage Rating	800V
Applications	Automotive, General Purpose, Military
Insulation Material	Polyester, Glass Filled
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	137.8µin (3.50µm)
Base Product Number	M80-887
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	M808872601,952-1919,2266-M80-8872601
Standard Package	8
Win Source Part Number	1332646-M80-8872601
Ultra Librarian 3D Model	Ultra Librarian M80-8872601 CAD Model

Description

The M80-8872601 is a product that is manufactured by Harwin Inc.

Connector Category: rectangular connectors, headers, receptacles, and female sockets
Packaging: tube
Positions: 26
Connector Type: receptacle
Contact Type: female socket
Voltage Rating: 800V
Mated Stacking Heights: 7.23mm and 7.85mm
Material Flammability Rating: UL94 V-0
Pitch-Mating: 0.079 inches
Operating Temperature Range: from -55°C to 125°C
