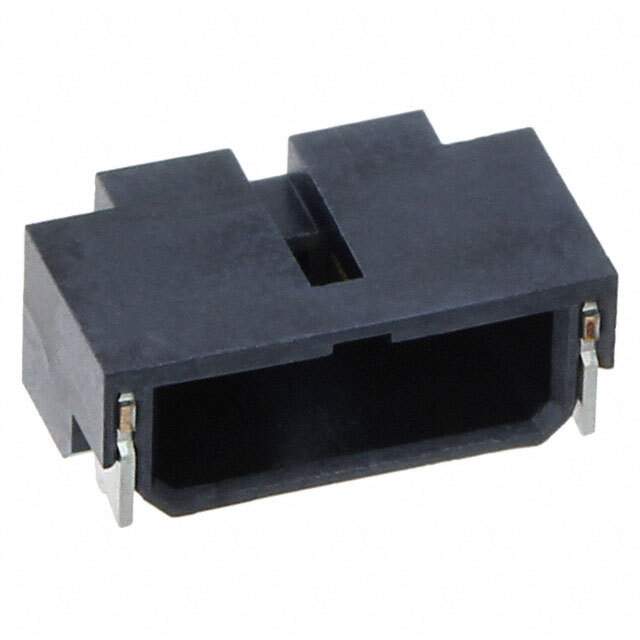

10125839-04RAEHLF

Get a Quote

Part No	10125839-04RAEHLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 4POS 1.2MM / Connector Header Surface Mount, Right Angle 4 position 0.047" (1.20mm)
Datasheet	10125839-04RAEHLF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Tab
Pitch - Mating	0.047" (1.20mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.098" (2.50mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.90µin (0.099µm)
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	2.00µin (0.051µm)
Base Product Number	10125839
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-4886-6,10125839-04RAEHLF-ND,609-4886-2,609-4886-1
Standard Package	2,000
Win Source Part Number	1030198-10125839-04RAEHLF
Ultra Librarian 3D Model	Ultra Librarian 10125839-04RAEHLF CAD Model

Description

The 10125839-04RAEHLF is a rectangular connector that is used in electronic circuits for board to cable/wire connections.

Positions: 4-position
Contact Type: loaded with all contacts
Mounting: surface-mounted
Fastening Type: detent lock
Pitch: 0.047" (1.20mm)
Gold Finish Thickness: 3.90µin (0.099µm)
Shrouded: 4 walls
Mounting Type: right-angle
Material: copper alloy
Insulation Material: liquid crystal polymer (LCP)
Halogen-Free: Yes
Category: connectors, interconnects
Packaging: tape & reel
Standard Package: 2,000
