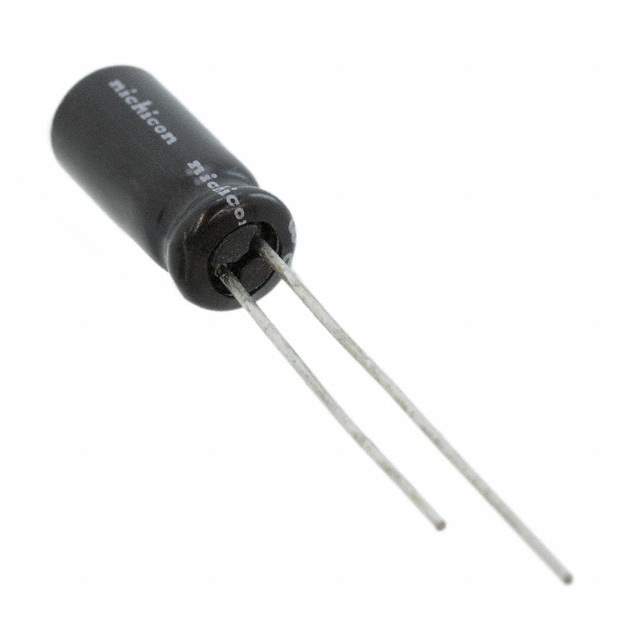

UVP1A470MDD1TD Real Image
Same model may have multiple batches, images only for reference.

UVP1A470MDD1TD

Part No UVP1A470MDD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 10V RADIAL / 47 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet
UVP1A470MDD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVP
Package Cut Tape (CT) Tape & Box (TB)
Product Status Obsolete
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Bi-Polar
Applications General Purpose
Ripple Current @ Low Frequency 76 mA @ 120 Hz
Ripple Current @ High Frequency 152 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349197-UVP1A470MDD1TD
Ultra Librarian 3D Model Ultra Librarian UVP1A470MDD1TD CAD Model

Description

The Nichicon UVP series aluminum electrolytic capacitor is an excellent choice for general purpose applications.

  • Capacitance: 47 µF
  • Voltage Rating: 10 V
  • Polarity: Bi-polarized
  • Tolerance: ±20%
  • ESR: Not specified
  • Ripple Current: 76 mA @ 120 Hz and 152 mA @ 10 kHz
  • Package: Radial, can
  • Diameter: 0.197 inches
  • Seated Height: 0.492 inches
  • Lifetime: 2000 hours @ 85°C
