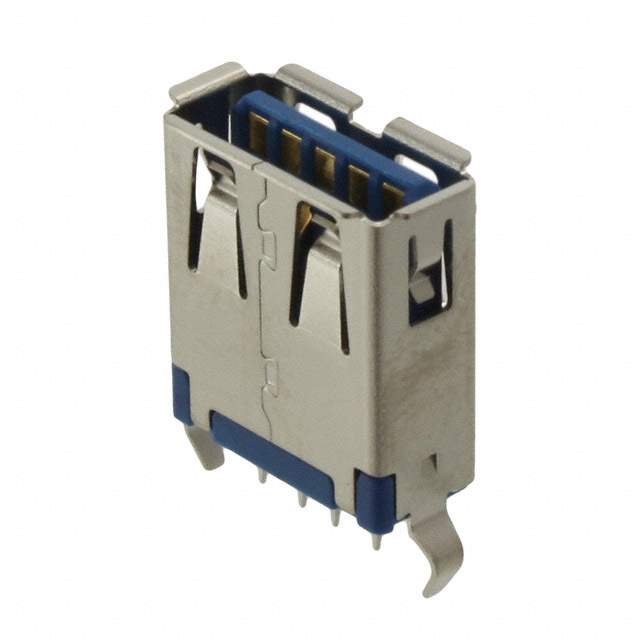

Same model may have multiple batches, images only for reference.

10117836-001LF

Name: 10117836-001LF
Brand: Amphenol
SKU: 1285039
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	10117836-001LF
Manufacturer	Amphenol
Catalog	USB, DVI, HDMI Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr	Amphenol ICC (FCI)
Package	Tray
Product Status	Obsolete
Connector Type	USB-A (USB TYPE-A)
Number of Contacts	9
Gender	Receptacle
Specifications	USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type	Through Hole
Mounting Feature	Vertical
Termination	Solder
Features	Board Lock
Temperature Range - Operating	-55°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	0.25A, 1.8A
Voltage - Rated	30VAC
Shielding	Unshielded
Contact Finish	Gold
Shell/Shielding Material	Copper Alloy
Material Flammability Rating	UL94 V-0
Insulation Color	Blue
Base Product Number	10117836
Other Names	10117836001LF,609-4663
Standard Package	120
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285039-10117836-001LF
Ultra Librarian 3D Model	Ultra Librarian 10117836-001LF CAD Model

Description

The Amphenol ICC (FCI) 10117836-001LF USB-A connector is a board lock type connector with 9 contacts.

Contacts: 9
Type: Receptacle
Specification: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Feature: Vertical
Shielded: Yes
Material Flammability Rating: UL94 V-0
Voltage Rating: 30V AC
Current Rating: 0.25A, 1.8A
