Same model may have multiple batches, images only for reference.

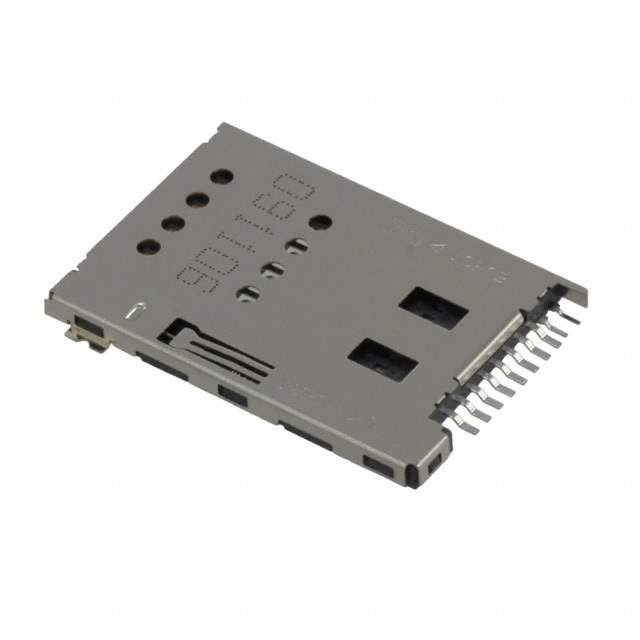

101-00271-82 Real Image
Same model may have multiple batches, images only for reference.

101-00271-82

Part No 101-00271-82
Manufacturer Amphenol
Catalog Memory Connectors - PC Card Sockets
Description CONN SIM CARD PUSH-PUSH R/A SMD / 10 (8 + 2) Position Card Connector SIM Card Surface Mount, Right Angle Gold
Datasheet
101-00271-82 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Amphenol ICC (Commercial Products)
Package Tape & Reel
Product Status Obsolete
Card Type SIM Card
Number of Positions 10 (8 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.077" (1.95mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 101-00271
Standard Package 900
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350665-101-00271-82
Ultra Librarian 3D Model Ultra Librarian 101-00271-82 CAD Model

Description

The 101-00271-82 is a PC card socket designed by Amphenol ICC.

  • Positions: 10
  • Switch: With Switch
  • Card Type: SIM
  • Connector & Ejector Type: Push-In/Push-Out
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -55°C to 105°C
  • Package: Tape and Reel
  • Quantity: 900
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin
  • Series: 101
  • Application: Memory Connector
  • Status: Obsolete
