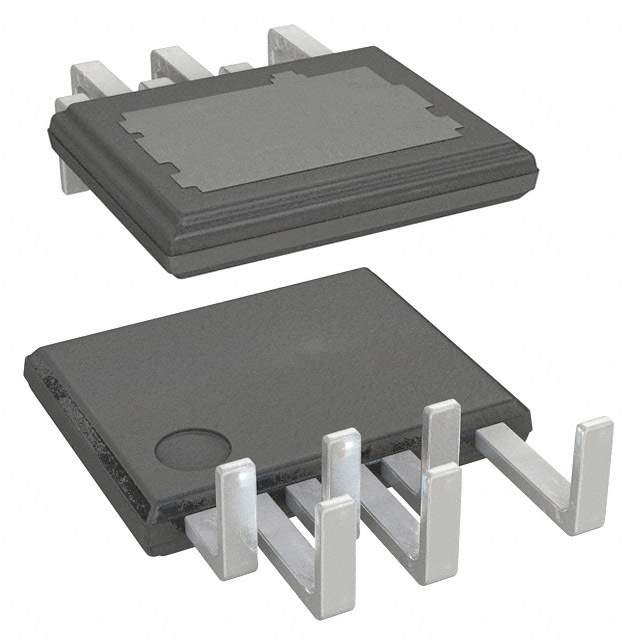

LYT4315L Real Image
Same model may have multiple batches, images only for reference.

LYT4315L

Part No LYT4315L
Manufacturer Power Integrations
Catalog Board Mount LED Drivers
Description LED Driver IC / IC LED DRIVER OFFL DIM ESIP-7F
Datasheet
LYT4315L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series LYTSwitch-4
Packaging Tube
Part Status Obsolete(EOL)
Type AC DC Offline Switcher
Topology Flyback, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Voltage Supply MIN 85VAC
Voltage Supply MAX 132VAC
Output Current per Channel 5.44A (Switch)
Frequency 132kHz
Dimming Triac
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 7-SSIP, 6 Leads, Exposed Pad, Formed Leads
Manufacturer Package eSIP-7F
Win Source Part Number 784824-LYT4315L
Popularity Medium
Supply and Demand Status Limited
Family Name LYT4315L
Introduction Date November 13, 2012
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LYT4315L CAD Model

Description

The LYTSwitch-4 AC DC offline switcher is a through-hole type switcher with a dimming feature and a frequency of 132kHz. It is manufactured by Power Integrations.

  • Frequency: 132kHz
  • Topology: flyback, step-down (buck), step-up (boost)
  • Voltage Supply MAX: 132VAC
  • Voltage Supply MIN: 85VAC
  • Internal Switch: Yes
  • Dimming Feature: Yes
  • Package: eSIP-7F, 6 leads, exposed pad, formed leads
  • RoHS Compliance: Not applicable
  • Status: Obsolete
