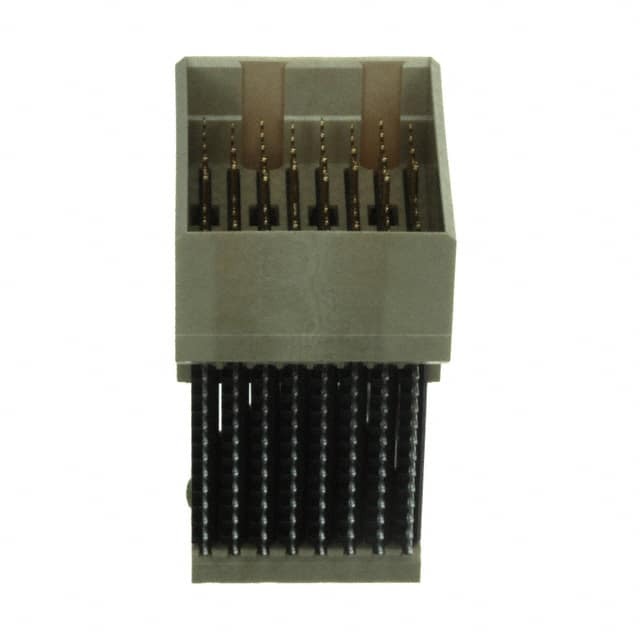

10084604-111LF
Same model may have multiple batches, images only for reference.

10084604-111LF

Part No 10084604-111LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HDR HI SPEED 96POS EDGE MT / 96 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol
Series Airmax VS®
Package Tube
Product Status Active
Connector Usage Daughtercard
Connector Type Header, Male Pins
Connector Style High Speed
Number of Positions 96
Number of Positions Loaded All
Pitch 0.055" (1.40mm)
Number of Rows 12
Number of Columns 8
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Color Natural
Material Flammability Rating UL94 V-0
Base Product Number 10084604
Standard Package 180 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904878-10084604-111LF
Ultra Librarian 3D Model Ultra Librarian 10084604-111LF CAD Model

Description

The 904878-10084604-111LF is a specialized backplane connector from the Airmax VS® series by Amphenol.

  • Positions: 96
  • Pitch: 0.055" (1.40mm)
  • Connector Type: Header
  • Gender: Male Pins
  • Application: Daughtercard
  • Rows: 12
  • Columns: 8
  • Positions Loaded: All
  • Termination: Press-Fit
  • Material Flammability Rating: UL94 V-0
  • Package: Tube
  • Standard Package: 180 pieces
  • Mounting Orientation: Right-Angle
  • Mounting Location: Board Edge Through-Hole
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.69.4040
