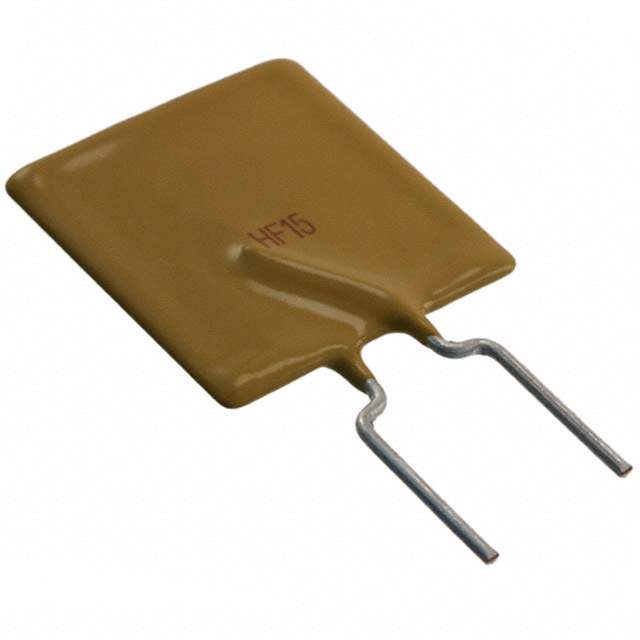

Part No AHRF1500
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 15A HOLD / PTC Resettable Fuse 15A(hold) 33A(trip) 16VDC 100A 7W 20s 0.0027Ohm Radial 23.5 X 3.5 X 28.7mm Bulk Automotive
Datasheet
AHRF1500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, AHRF
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 15A
Current - Trip (It) 33A
Time to Trip 20s
Resistance - Initial (Ri) (Minimum) 2.7 mOhm
Resistance - Post Trip (R1) (Maximum) 9.2 mOhm
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.925" L x 0.138" W (23.50mm x 3.50mm)
Height - Seated (Maximum) 1.130" (28.70mm)
Lead Spacing 0.400" (10.15mm)
Win Source Part Number 768366-AHRF1500
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHRF1500 CAD Model

Description

The AHRF series of Polymeric circuit protection devices from Littelfuse Inc. is designed for through-hole mounting.

  • Voltage: 16V
  • Current: 100A
  • Current Trip: 33A
  • Time to Trip: 20s
  • Current Hold (Ih): 15A
  • Package: Radial, disc
  • Lead Spacing: 0.400" (10.15mm)
  • Initial Resistance: 2.7 mOhm
  • Post-Trip Resistance: 9.2 mOhm
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
