Same model may have multiple batches, images only for reference.

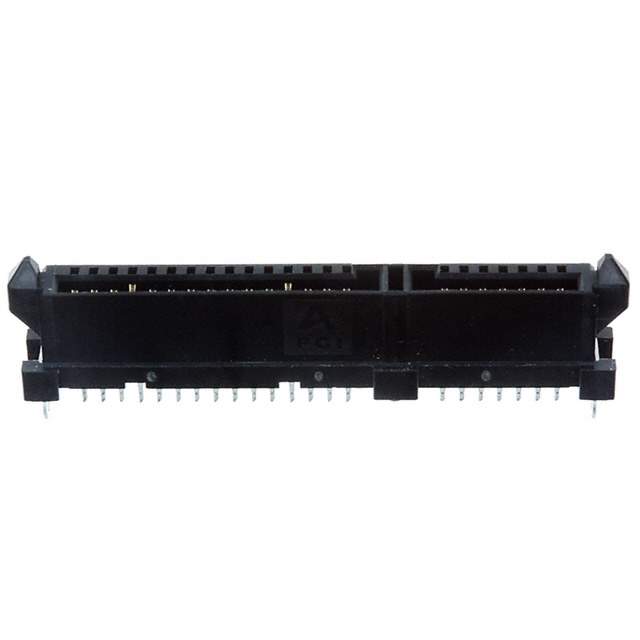

10017660-001LF Real Image
Same model may have multiple batches, images only for reference.

10017660-001LF

Part No 10017660-001LF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SATA RCPT 22POS SLD PCB / 22 Position SATA Receptacle Connector Solder Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr Amphenol ICC (FCI)
Package Tray
Connector Style Receptacle
Connector Type SATA
Number of Positions 22
Mounting Type Through Hole
Termination Solder
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10017660
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-1030,10017660001LF
Standard Package 48
Win Source Part Number 1030195-10017660-001LF
Ultra Librarian 3D Model Ultra Librarian 10017660-001LF CAD Model

Description

The Amphenol ICC (FCI) pluggable connector is a high-quality electronic component that is designed to provide accurate and reliable performance in a wide range of applications.

  • Positions: 22 positions
  • Features: board guide, board lock
  • Connector Type: SATA connector type
  • Contact Finish: gold contact finish
  • Thickness: 30.0µin (0.76µm)
  • Compliance: RoHS-compliant
  • Package: tray package
  • Alternative Part: cross-reference SSW-122-01-G-S, BCS-122-L-S-TE, BCS-122-L-S-PE, 1-215297-6, 2-215297-0, and 6-534237-4
  • Supply: short supply
  • Popularity: low popularity in the open market
  • Manufacturer: Amphenol ICC (FCI)
