Same model may have multiple batches, images only for reference.

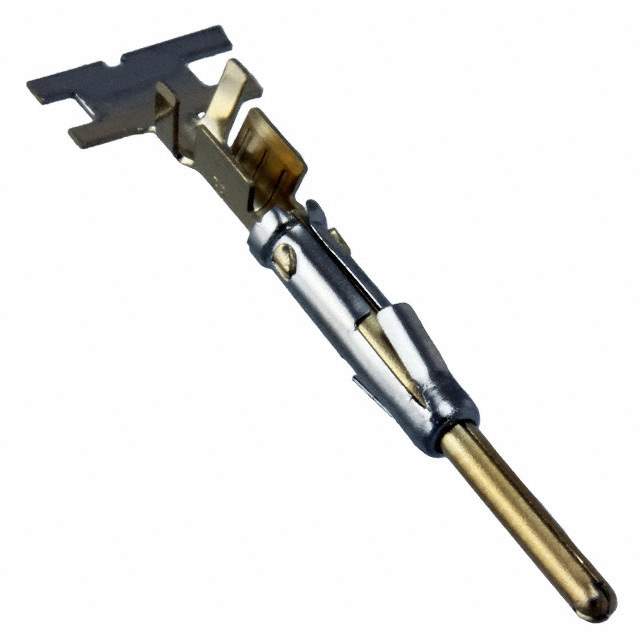

SP20M1F Real Image
Same model may have multiple batches, images only for reference.

SP20M1F

Part No SP20M1F
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONTACT PIN 20-22AWG CRIMP GOLD  /  Pin Contact 20-22 AWG Size 16 Crimp Gold
Datasheet
SP20M1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Contacts
Mfr Amphenol Sine Systems Corp
Series ecomate® RM
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Type Signal, Stamped
Contact Type Pin
Contact Size 16
Wire Gauge or Range - AWG 20-22 AWG
Wire Gauge or Range - mm2 0.34 ~ 0.5mm²
Contact Termination Crimp
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Termination Finish Copper Alloy
Features Insulation Support
Base Product Number SP20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names 889-1195-2,889-1195-1
Standard Package 4,000
Win Source Part Number 986311-SP20M1F
Ultra Librarian 3D Model Ultra Librarian SP20M1F CAD Model

Description

The Amphenol Sine Systems Corp 986311-SP20M1F is a circular connector contact designed for signal use.

  • Type: Stamped
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Wire Gauge: 20-22 AWG or 0.34~0.5mm²
  • Insulation Support: Yes
  • Material: Copper Alloy
  • Termination: Crimp
  • Packaging: Tape and reel or cut tape
  • Standard Package: 4,000 pieces
  • Status: Obsolete
