Same model may have multiple batches, images only for reference.

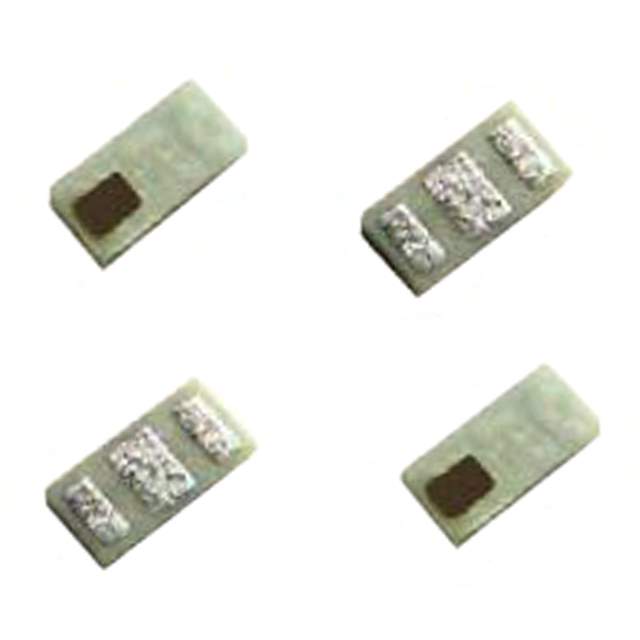

5550BP14A0800T Real Image
Same model may have multiple batches, images only for reference.

5550BP14A0800T

Part No 5550BP14A0800T
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description RF FILTER BAND PASS 5.55GHZ 0603 / 5.55GHz Frequency Band Pass RF Filter (Radio Frequency) 800MHz Bandwidth 0.7dB 0603 (1608 Metric), 3 PC Pad
Datasheet
5550BP14A0800T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr Johanson Technology Inc.
Package Tape & Reel
Frequency 5.55GHz
Bandwidth 800MHz
Filter Type Band Pass
Insertion Loss 0.7dB
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), 3 PC Pad
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.90.9800
Other Names 712-1641-6,712-1641-1,712-1641-2
Standard Package 4,000
Win Source Part Number 961735-5550BP14A0800T
Ultra Librarian 3D Model Ultra Librarian 5550BP14A0800T CAD Model

Description

The 5550BP14A0800T is an RF filter manufactured by Johanson Technology Inc.

  • Filter Type: Bandpass Filter
  • Frequency: 5.55GHz
  • Bandwidth: 800MHz
  • Insertion Loss: 0.7dB
  • Height: 0.024" (0.60mm)
  • Package Type: Tape and Reel
  • Mounting: SMD (SMT)
  • Package/Case: 0603 (1608 Metric), 3 PC Pad
  • REACH: Not Affected
