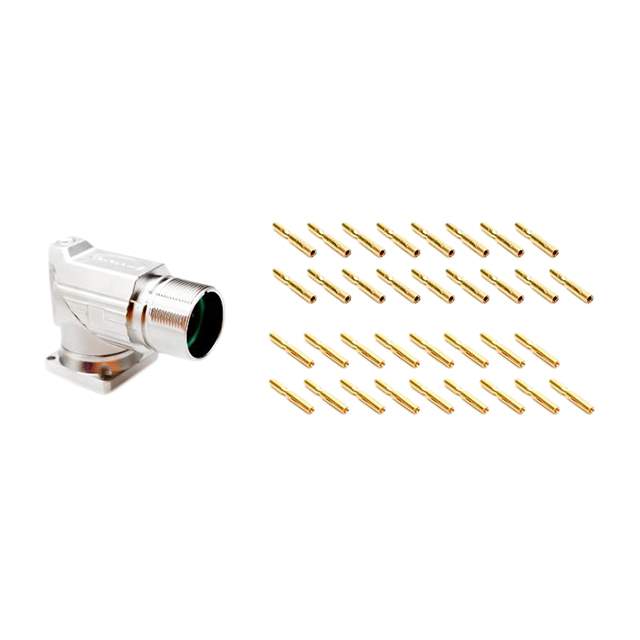

MA5RAP1702S-KIT

Part No MA5RAP1702S-KIT
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors
Description CONN RCPT FMALE 17POS GOLD CRIMP / 17 Position Circular Connector Receptacle, Female Sockets Crimp
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Sine Systems Corp
Series MotionGrade™ Elite M23 Signal Series, Checkmate™ Quick Locking
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 17
Shell Size - Insert M23-17
Mounting Type Panel Mount, Right Angle
Mounting Feature Flange
Termination Crimp
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Zinc Die Cast
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Rotatable
Current Rating (Amps) 9A
Voltage Rating 125VAC/DC
Temperature Range - Operating -20°C ~ 130°C
Base Product Number MA5RAP
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4020
Other Names 889-2757
Standard Package 10
Win Source Part Number 1011605-MA5RAP1702S-KIT
Ultra Librarian 3D Model Ultra Librarian MA5RAP1702S-KIT CAD Model

Description

This connector is dust-tight and waterproof with an IP67 rating.

  • Positions: 17
  • Backshell: rotatable
  • Termination: crimp
