Same model may have multiple batches, images only for reference.

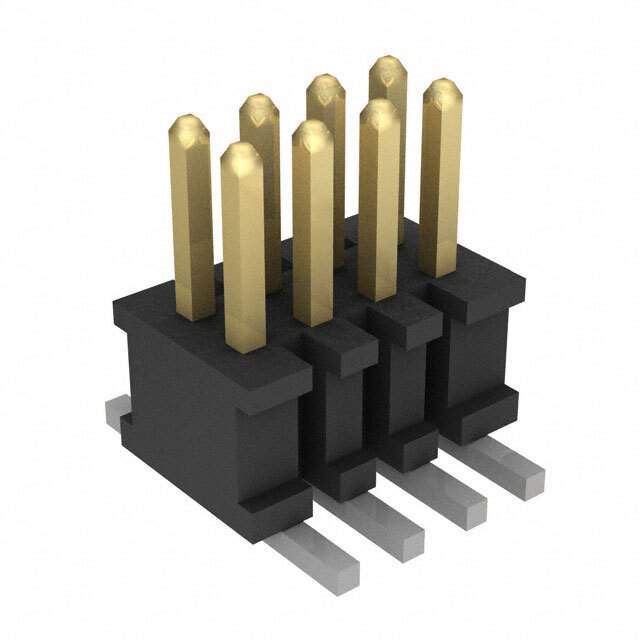

FTSH-104-01-L-DV-P-TR Real Image
Same model may have multiple batches, images only for reference.

FTSH-104-01-L-DV-P-TR

Part No FTSH-104-01-L-DV-P-TR
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 8POS 1.27MM / Connector Header Surface Mount 8 position 0.050" (1.27mm)
Datasheet
FTSH-104-01-L-DV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Tape & Reel
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.099" (2.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-104
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names FTSH-104-01-L-DV-P-TR-ND,SAM13922CT,SAM13922DKR,FTSH-104-01-L-DV-P-FR,SAM13922TR
Standard Package 475
Win Source Part Number 1018808-FTSH-104-01-L-DV-P-TR
Ultra Librarian 3D Model Ultra Librarian FTSH-104-01-L-DV-P-TR CAD Model

Description

The FTSH-104-01-L-DV-P-TR is a header connector manufactured by Samtec Inc. Bold the product name (e.g., BAV99S,135 → BAV99S,135) and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Connector Type: Header Connector
  • Pin Gender: Male
  • Header Type: Cuttable
  • Contact Material: Phosphor Bronze
  • Number of Positions: 8
  • Positions Loaded: All
  • Number of Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Tape and Reel
  • Insulation Color: Black
  • Shrouding: Unshrouded
  • Suitable For: Board to Board or Cable
  • Pitch: 0.050 inches (1.27mm)
  • Mating Contact Finish: Gold
  • Mating Contact Finish Thickness: 10.0µin (0.25µm)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 3.4A per contact
  • RoHS Compliant: Yes
  • Voltage Rating: -
