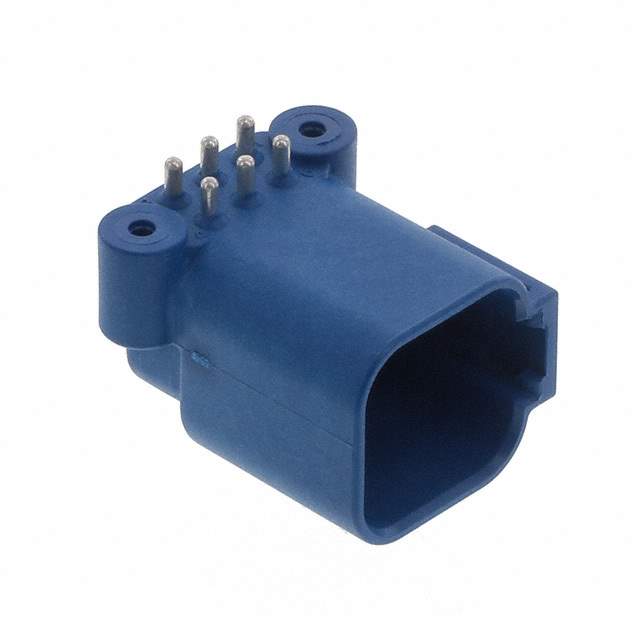

Same model may have multiple batches, images only for reference.

ATF13-6P2-BM13BLU

Name: ATF13-6P2-BM13BLU
Brand: Amphenol Sine Systems Corp
SKU: 1099163
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ATF13-6P2-BM13BLU
Manufacturer	Amphenol Sine Systems Corp
Catalog	Rectangular Connectors
Description	BOARD MOUNT HEADER, RIGHT ANGLE, / Connector Header Through Hole, Right Angle 6 position 0.174" (4.42mm)
Datasheet	ATF13-6P2-BM13BLU Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol Sine Systems Corp
Series	BoardLock™ AT
Package	Bulk
Connector Type	Receptacle
Contact Type	Male Pin
Pitch - Mating	0.174" (4.42mm)
Number of Positions	6
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.843" (21.41mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Blue
Current Rating (Amps)	13A
Voltage Rating	250VDC
Applications	Automotive, General Purpose, Industrial
Base Product Number	ATF13
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	889-ATF13-6P2-BM13BLU
Standard Package	420
Win Source Part Number	1099163-ATF13-6P2-BM13BLU
Ultra Librarian 3D Model	Ultra Librarian ATF13-6P2-BM13BLU CAD Model

Alternative Products

Description

The Amphenol Sine Systems Corp ATF13-6P2-BM13BLU is a male pin connector with 6 positions and a mounting flange.

Connector Type: Male Pin
Number of Positions: 6
Mounting Feature: Mounting Flange
Connector Style: Board to Cable/Wire
Design: Shrouded 4 Wall
Current Rating: 13A
Applications: Automotive, General Purpose, and Industrial
Waterproof Rating: IP67
