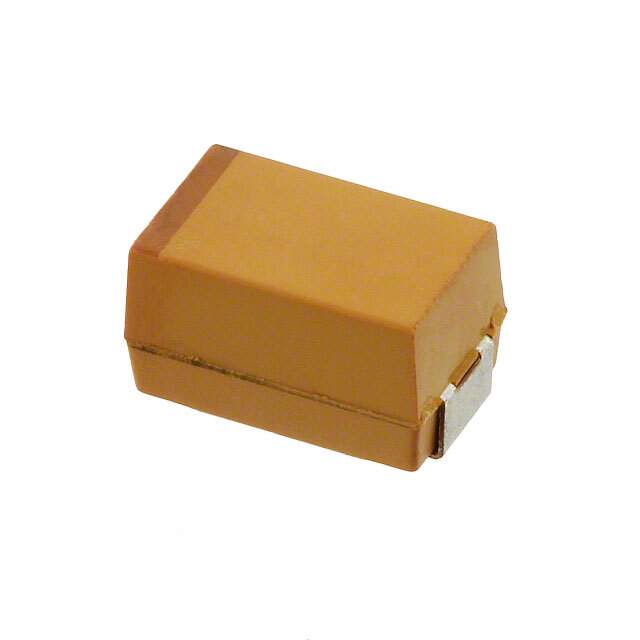

TCJB157M006R0069

Part No TCJB157M006R0069
Manufacturer AVX Corporation
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 150UF 6.3V 1210
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TCJ
Packaging Reel - TR
Capacitance 150μF
Tolerance ±20%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 69 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 1411 (3528 Metric)
Size 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Manufacturer Size Code B
Features General
Manufacturer Homepage www.avx.com
Win Source Part Number 735097-TCJB157M006R0069
Popularity Medium
Supply and Demand Status Balance
Family Name TCJ
Introduction Date May 25, 2005
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TCJB157M006R0069 CAD Model

Description

The AVX Corporation 735097-TCJB157M006R0069 is a molded capacitor with a capacitance of 150μF and a voltage rating of 6.3V.

  • Applications: General-purpose
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 69 mOhm
  • Package: 1411 (3528 Metric)
  • Temperature Range: -55°C ~ 105°C
  • Height: 0.083" (2.10mm)
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Series: TCJ
  • Halogen-Free Compliant: Yes
  • Introduction Date: May 25, 2005
  • Estimated EOL Date: 2026
  • Manufactured in: Czech Republic
  • ECCN: EAR99
  • Alternative Parts: T543M157M006AHW070, T55B157M6R3C0070, T543M157M006ATE70
