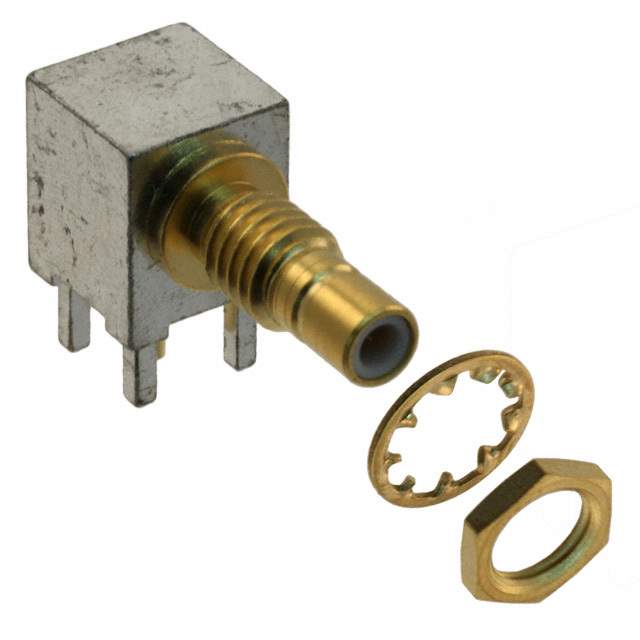

903-413J-51A

Part No 903-413J-51A
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description Conn SMB 0Hz to 4GHz 50Ohm Solder RA Thru-Hole RCP Gold / CONN SMB JACK R/A 50 OHM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol-RF Division
Standard Package 1
Category Connectors Interconnects
Family Coaxial Connectors (RF)
Packaging Bulk
Connector Style SMB
Connector Type Jack Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Style Panel Mount Bulkhead; Through Hole Right Angle
Fastening Type Snap-On
Frequency - Max 4GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Material Brass
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -65°C ~ 165°C
Catalog SMB
Win Source Part Number 039041-903-413J-51A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in RF Communications, Industrial
Family Name SMB
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 903-413J-51A CAD Model

Description

Product Description

The 903-413J-51A is a high-performance connector that caters to the evolving needs of the electronics industry. Its advanced design ensures a secure and reliable connection, critical for professional applications.

Features and Benefits

  • Precision Engineering: Guarantees secure and precise connections.
  • Robust Performance: Capable of handling high electrical loads.
  • Versatile Usage: Ideal for various electronic applications.

Applications

  • Telecommunications equipment
  • Data centers
  • Aerospace systems
  • Automotive electronics

This connector is essential for maintaining high operational standards in critical electronic systems.
