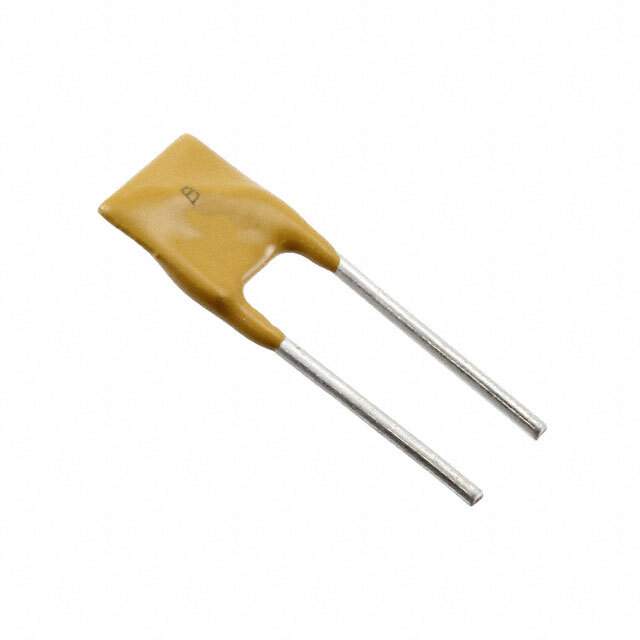

MF-RG500-0 Real Image
Same model may have multiple batches, images only for reference.

MF-RG500-0

Part No MF-RG500-0
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-RG500-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Max) 5A
Current - Trip (It) 8.5A
Time to Trip 2s
Resistance - Initial (Ri) (Min) 15 mOhm
Resistance - Post Trip (R1) (Max) 34 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.409" L x 0.118" W (10.40mm x 3.00mm)
Height - Seated (Max) 0.563" (14.30mm)
Lead Spacing 0.114" (2.90mm)
Win Source Part Number 058462-MF-RG500-0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-RG500-0 CAD Model

Description

Bourns Inc. presents the MF-RG500-0, a polymeric circuit protection component that is ideal for circuit protection applications.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Hold (Ih): 5A
  • Current Trip (It): 8.5A
  • Time to Trip: 2s
  • Mounting: Through hole
  • Packaging: Bulk
  • Height when seated: 0.563 inches (14.30mm)
  • Dimension: 0.409 inches L x 0.118 inches W (10.40mm x 3.00mm)
  • Initial Resistance (Ri): 15 mOhm
  • Post-Trip Resistance (R1): 34 mOhm
  • Product Status: Active
  • Popularity: Medium
