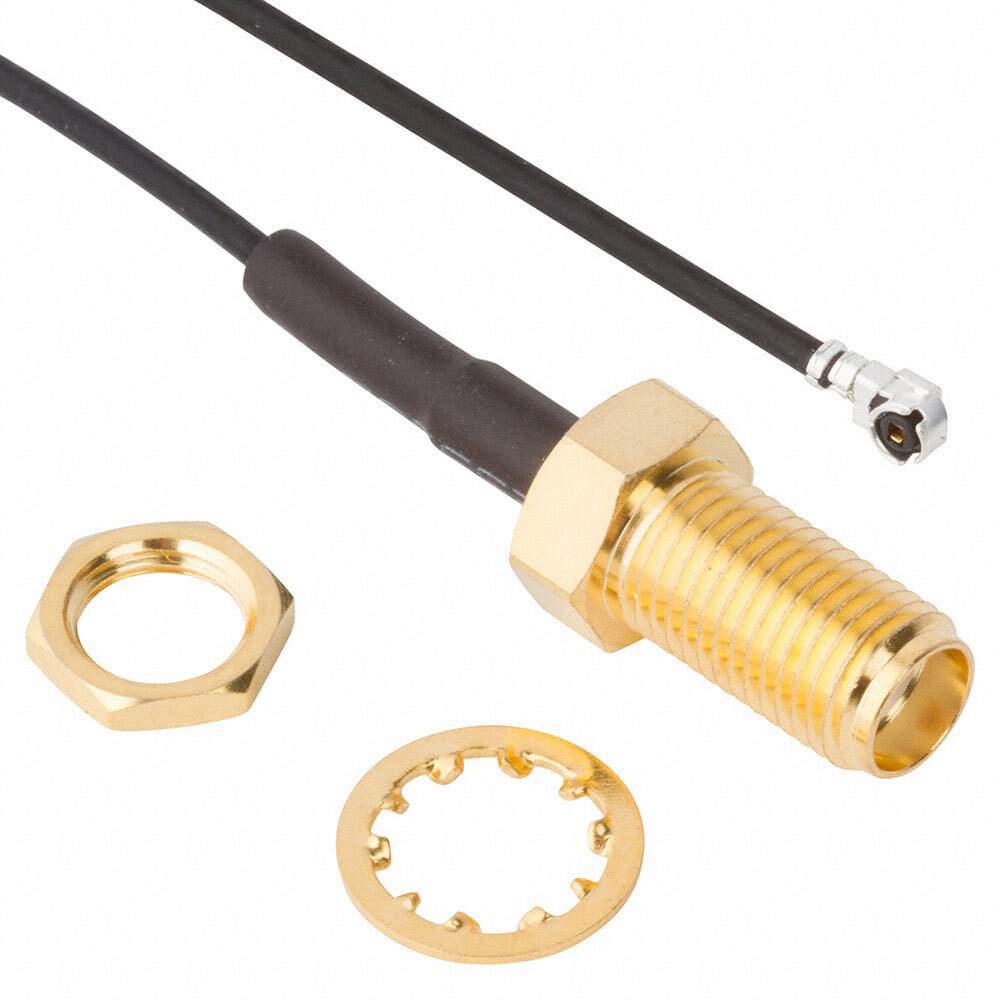

336313-14-0100 Real Image
Same model may have multiple batches, images only for reference.

336313-14-0100

Part No 336313-14-0100
Manufacturer Amphenol-RF Division
Catalog Coaxial Cables (RF)
Description SMA BULKHEAD JACK-AMC PLUG 100MM / Cable Assembly 1.37mm Cable 0.1m SMA to AMC F-M Bag
Datasheet
336313-14-0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Series AMC to SMA
Gender Female to Female
Style SMA to UMC
1st Connector SMA Female Jack
2nd Connector Ultra Miniature Coaxial Plug, Female Socket, Right Angle
Length 3.937" (100.00mm)
Cable Type 1.37mm OD Coaxial Cable
Impedance 50 Ohm
Frequency - Max 6GHz
Win Source Part Number 793152-336313-14-0100
Popularity Medium
Supply and Demand Status Limited
Family Name 336313-14
Introduction Date July 29, 2015
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 336313-14-0100 CAD Model

Description

The Amphenol RF Division's electronic component with Win Source Part Number 793152-336313-14-0100 is a cable assembly with a length of 3.937" (100.00mm).

  • Impedance: 50 Ohm
  • Frequency Max: 6GHz
  • Cable Type: 1.37mm OD Coaxial Cable
  • Connector Style: SMA to UMC
  • First Connector: SMA Female Jack
  • Second Connector: Ultra Miniature Coaxial Plug, Female Socket, Right Angle
  • Supply and Demand Status: Limited
