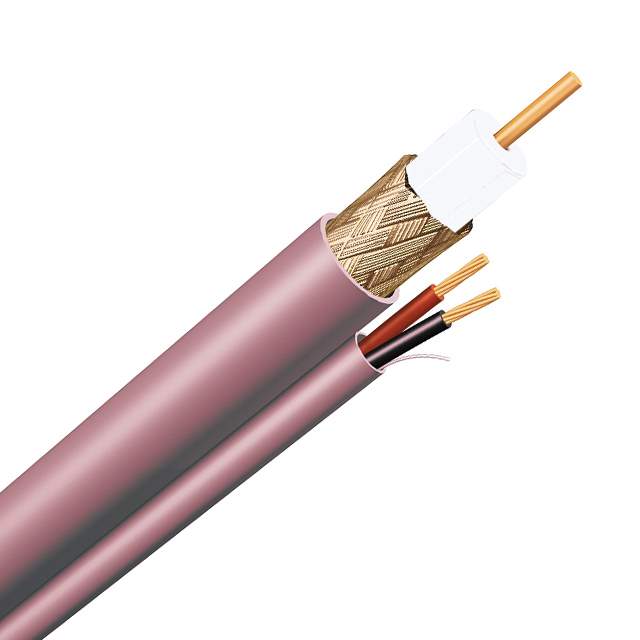

549945 010500 Real Image
Same model may have multiple batches, images only for reference.

549945 010500

Part No 549945 010500
Manufacturer Belden Inc.
Catalog Coaxial Cables (RF)
Description CABLE COAX COMPOSITE RG59 2/18 5
Datasheet
549945 010500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Belden Inc.
Cable Type Coaxial, Twisted Pair - Combo
Cable Group RG-59
Wire Gauge 20 AWG, 18 AWG (2)
Conductor Strand Solid, 7 Strands / 26 AWG (2)
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Impedance 75 Ohm
Length 500' (152.40m)
Jacket Color Black
Usage CCTV
Conductor Material Copper, Bare
Dielectric Material Foam High Density Polyethylene (FHDPE), Polypropylene (PP)
Dielectric Diameter 0.059" (1.50mm), 0.145" (3.68mm)
Shield Material Copper, Bare
VoP, Velocity of Propagation 83
Operating Temperature Range -30°C ~ 80°C
Win Source Part Number 777771-549945 010500
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 549945 010500 CAD Model

Description

The 549945 010500 electronic component is manufactured by Belden Inc. and is a cable type coaxial and twisted pair combo.

  • Supply and Demand Status: limited
  • Operating Temperature Range: -30°C to 80°C
