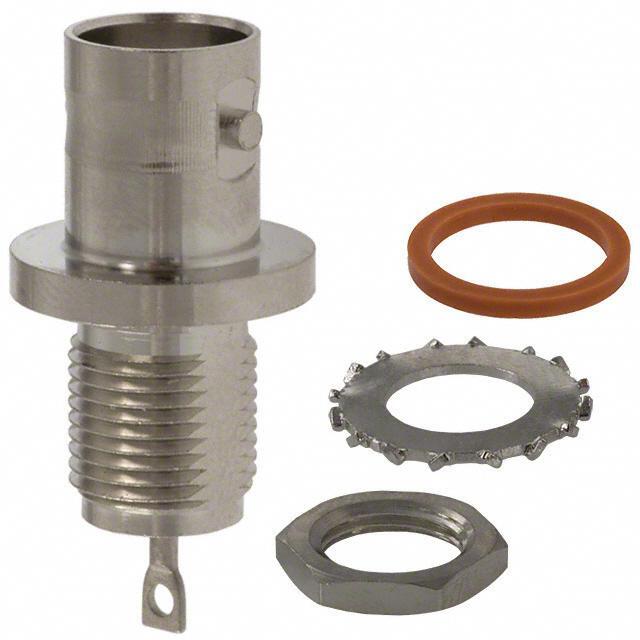

Same model may have multiple batches, images only for reference.
31-238 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

31-238

Part No 31-238
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN BNC RCPT STR 50 OHM SOLDER / Conn BNC 0Hz to 2GHz 50Ohm Solder ST Panel Mount RCP Silver/Gold
Datasheet
31-238 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Connector Style BNC
Connector Type Receptacle, Female Socket
Contact Termination Solder Eyelet
Shield Termination Solder
Impedance 50 Ohm
Mounting Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Bayonet Lock
Frequency - Max 2GHz
Housing Color Silver
Includes 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Silver
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -65°C ~ 165°C
Center Contact Material Beryllium Copper
Voltage Rating 500V
Mating Cycles 500
Insertion Loss 0.2dB
Win Source Part Number 793119-31-238
Popularity Medium
Supply and Demand Status Limited
Family Name 031-238
Introduction Date January 25, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 31-238 CAD Model

Description

The Amphenol RF Division 793119-31-238 is a BNC style female socket receptacle connector from Amphenol RF Division.

  • Mounting Type: Panel Mount
  • Voltage Rating: 500V
  • Frequency Range: Up to 2GHz
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Silver
  • Fastening Type: Bayonet Lock
  • Contact Termination: Solder Eyelet
  • Impedance: 50 Ohm
  • Insertion Loss: 0.2dB
  • Mounting: Rear Side Nut Bulkhead
  • Pieces: 4 (connector, gasket, lockwasher, nut)
  • Applications: Telecommunications, Instrumentation, Medical Equipment
