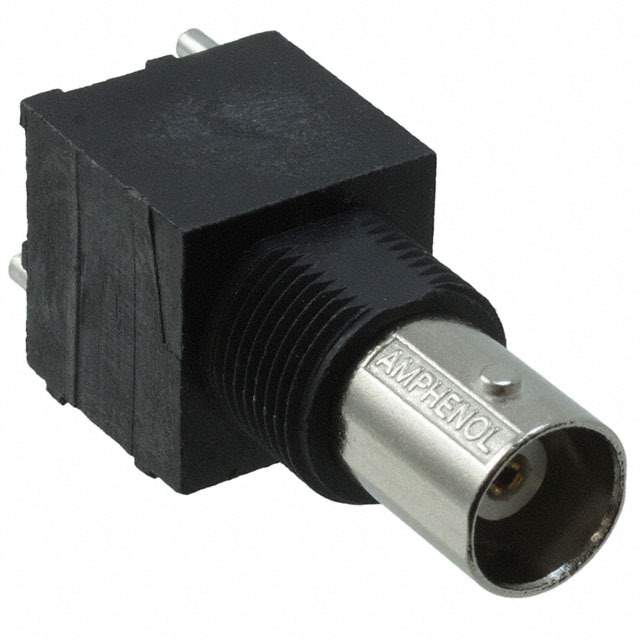

031-5539 Real Image
Same model may have multiple batches, images only for reference.

031-5539

Part No 031-5539
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK STR 50 OHM PCB
Datasheet
031-5539 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Tray
Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Maximum Input Frequency 1GHz
Features Board Guide, Isolated
Housing Color Black, Silver
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -55°C to 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Insertion Loss 0.2dB
Win Source Part Number 1092037-031-5539
Popularity Medium
Supply and Demand Status Balance
Application Field Used in RF Communications, Industrial
Ultra Librarian 3D Model Ultra Librarian 031-5539 CAD Model

Description

The Amphenol RF Division 1092037-031-5539 is a BNC female socket jack connector with a bayonet lock fastening type.

  • Fastening Type: Bayonet Lock
  • Voltage Rating: 500V
  • Impedance: 50 Ohm
  • Isolation: Isolated
  • Features: Board Guide
  • Connector Style: BNC
  • Body Material: Zinc Die-Cast with Nickel Finish
  • Center Contact Material: Phosphor Bronze with Gold Plating
  • Shield Termination: Solder
  • Insertion Loss: 0.2dB
  • Mounting Feature: Bulkhead-Front Side Nut
  • Mounting Options: Panel Mounted or Through-Hole Mounted
  • Applications: RF Communications and Industrial Applications
