PT02E-18-32P Amphenol Industrial Operations – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

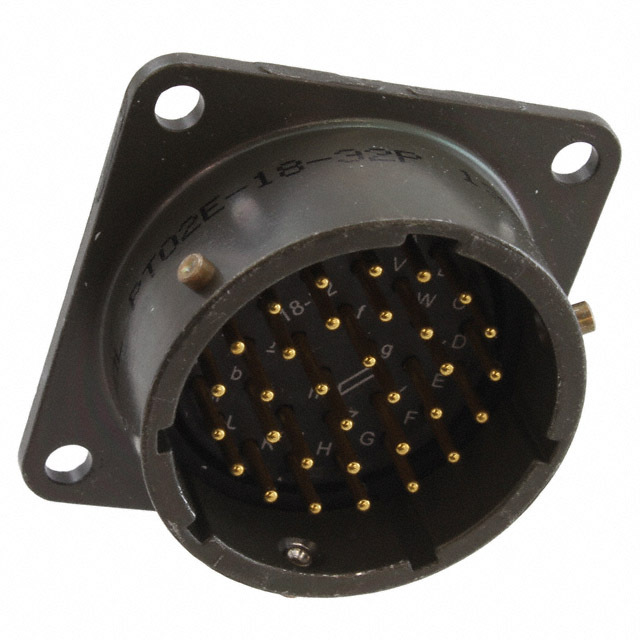

PT02E-18-32P

Part No PT02E-18-32P
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 32P GOLD SLDR CUP
Datasheet
PT02E-18-32P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsCircular ConnectorsCircular Connector Assemblies
Mfr Amphenol Industrial Operations
Series PT
Packaging Bulk
Part Status Active
Connector Type Receptacle, Male Pins
Number of Positions 32
Qualification MIL-DTL-26482 Series I
Shell Size - Insert 18-32
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection Environment Sealed
Shielding Unshielded
Operating Temperature -55°C ~ 125°C
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Contact Material Copper Alloy
Insert Material Neoprene
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Base Product Number PT02E
Ultra Librarian 3D Model Ultra Librarian PT02E-18-32P CAD Model
