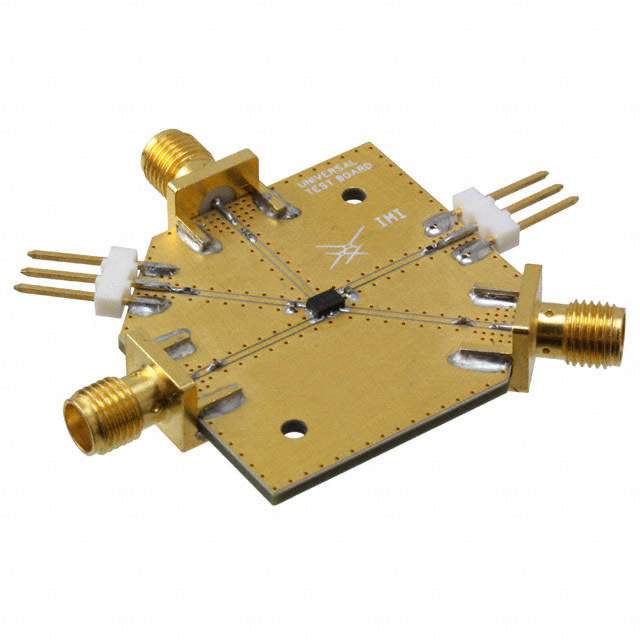

The SKY13377-313LF-EVB is an evaluation board designed to assess the performance of the SKY13377-313LF, a high-performance Single-Pole, Three-Throw (SP3T) switch from Skyworks Solutions. It's used for applications requiring flexible and efficient signal routing. Skyworks Solutions is known for its innovative RF and microwave semiconductor solutions.

Applications

• Diversity Switching: Used in wireless communication systems to select the best antenna for optimal signal reception.
• Filter Bank Switching: Implemented in RF front-ends to switch between different filter banks.
• Mode Switching: Allows switching between different operating modes in multi-mode wireless devices.
• Test and Measurement Equipment: Used in test setups to route signals to different instruments.
• Wireless Infrastructure: Employed in base stations and repeaters for flexible signal routing.

Features

• SP3T Configuration: Provides versatile signal routing with three selectable paths.
• Low Insertion Loss: Minimizes signal attenuation for enhanced performance.
• High Isolation: Ensures minimal signal leakage between paths.
• Fast Switching Speed: Enables rapid switching between different signal paths.
• Evaluation Board Included: Simplifies testing and performance evaluation.

Benefits

• Improved System Performance: Low insertion loss and high isolation contribute to enhanced signal quality.
• Increased Design Flexibility: SP3T configuration provides versatile routing options.
• Simplified Testing: Evaluation board allows for quick and easy performance assessment.
• Reduced Power Consumption: Low insertion loss helps minimize power dissipation.
• Compact Solution: Small size allows for integration into space-constrained applications.

Technical Specifications

The SKY13377-313LF typically features an operating frequency range of 0.1 to 3.0 GHz, a low insertion loss of approximately 0.5 dB, and high isolation between ports. The evaluation board includes SMA connectors for easy interfacing with test equipment. Consult the Skyworks Solutions datasheet for complete specifications, application notes, and board details for proper usage and optimal performance.
