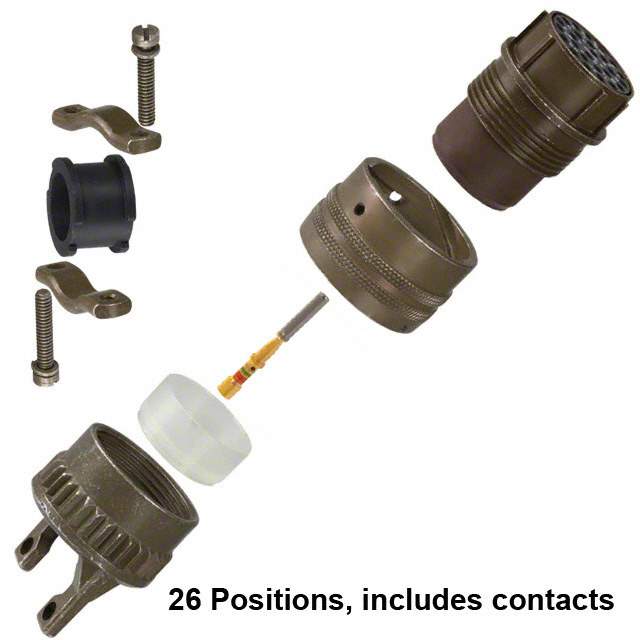

MS3126F-16-26S Real Image
Same model may have multiple batches, images only for reference.

MS3126F-16-26S

Part No MS3126F-16-26S
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN PLUG 26POS W/SOCKET CRIMP
Datasheet
MS3126F-16-26S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Industrial Operations
Packaging Bulk
Status Active
Connector Type Plug, Female Sockets
Number of Positions 26
Shell Size - Insert 16-26
Mounting Free Hanging (In-Line)
Termination Crimp
Fastening Type Bayonet Lock
Orientation N (Normal)
Ingress Protection Environment Resistant
Shell Material, Finish Aluminum, Olive Drab Cadmium Plated
Contact Finish Gold
Features Strain Relief
Voltage Rating 600VAC
Current Rating 7.5A
Temperature Range - Operating -55°C to 125°C
Win Source Part Number 1027313-MS3126F-16-26S
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian MS3126F-16-26S CAD Model

Description

The MS3126F-16-26S is a 26-position plug connector from Amphenol Industrial Operations.

  • Number of Positions: 26
  • Contact Gender: Female Sockets
  • Locking System: Bayonet Locking
  • Material: Aluminum
  • Finish: Olive Drab Cadmium Plated
  • Voltage Rating: 600VAC
  • Current Rating: 7.5A
  • Ideal for: Harsh Environments
  • Ingress Protection: Resistant
  • Popularity: Medium
  • Supply and Demand: Balance
