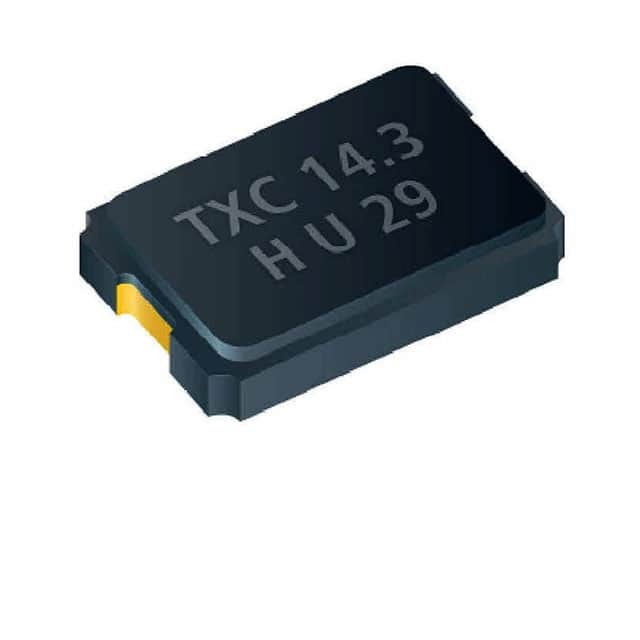

Same model may have multiple batches, images only for reference.
7A-12.000MAHE-T
Same model may have multiple batches, images only for reference.

7A-12.000MAHE-T

Part No 7A-12.000MAHE-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 12.0000MHZ 12PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 845392-7A-12.000MAHE-T
Ultra Librarian 3D Model Ultra Librarian 7A-12.000MAHE-T CAD Model

Description

The 7A-12.000MAHE-T is a 12 MHz MHz crystal from TXC Corporation.

  • Designed for: applications that require precise timing and frequency control.
  • Mode: fundamental
  • Frequency Stability: ±30ppm
  • Size: 0.197" L x 0.126" W
  • Mounting: surface mounted using the 2-SMD, no lead package.
  • Suitable for: a wide range of electronic systems that require accurate timing, such as communication devices, microcontrollers, and digital clocks.
  • Note: this crystal is an obsolete product and may not be readily available in the market.
  • Recommendation: For alternative options, please refer to the manufacturer's recommendations.
