Same model may have multiple batches, images only for reference.

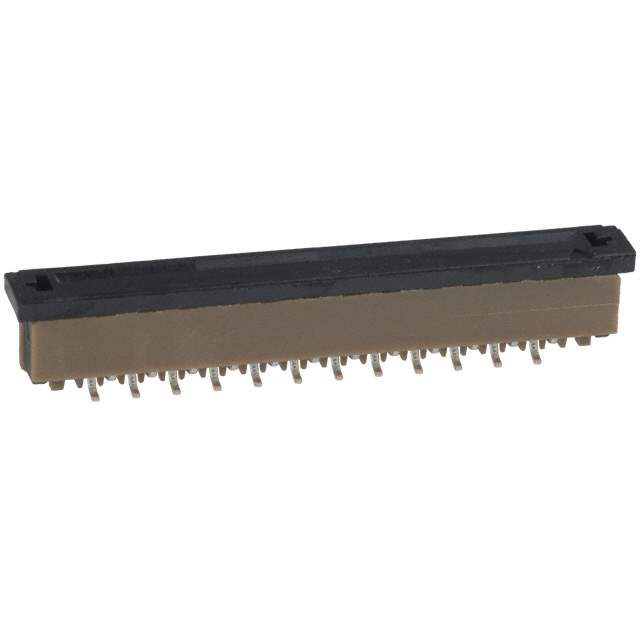

SFW24S-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW24S-2STE1LF

Part No SFW24S-2STE1LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 24POS 1MM SMD
Datasheet
SFW24S-2STE1LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 24
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.209" (5.30mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Finish Tin
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Housing Color Brown
Actuator Color Black
Mating Cycles 20
Win Source Part Number 124679-SFW24S-2STE1LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SFW24S-2STE1LF CAD Model

Description

The SFW24S-2STE1LF is a zero insertion force (ZIF) connector manufactured by Amphenol FCI.

  • Positions: 24
  • Pitch: 1.00mm
  • Cable End Type: Straight and Tapered
  • Suitable for: FFC and FPC flat flex types
  • Lock Type: Slide Lock
  • Material: Thermoplastic and Glass-Filled Materials
