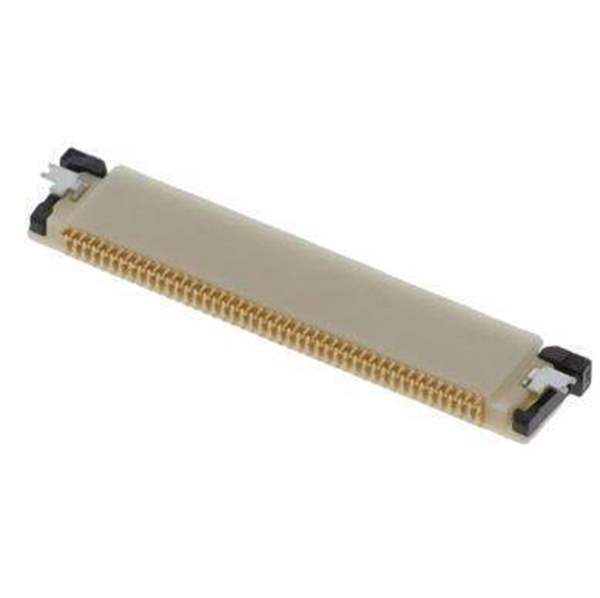

62684-45110E9ALFAmphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

62684-45110E9ALF

Part No 62684-45110E9ALF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 45POS 0.5MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Product Status Obsolete
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Contact Material Phosphor Bronze
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Win Source Part Number WS1209927-62684-45110E9ALF
Ultra Librarian 3D Model Ultra Librarian 62684-45110E9ALF CAD Model

Description

45 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
