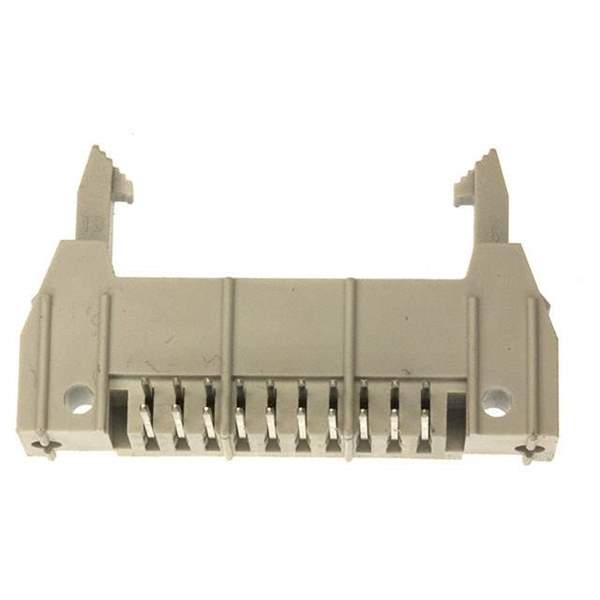

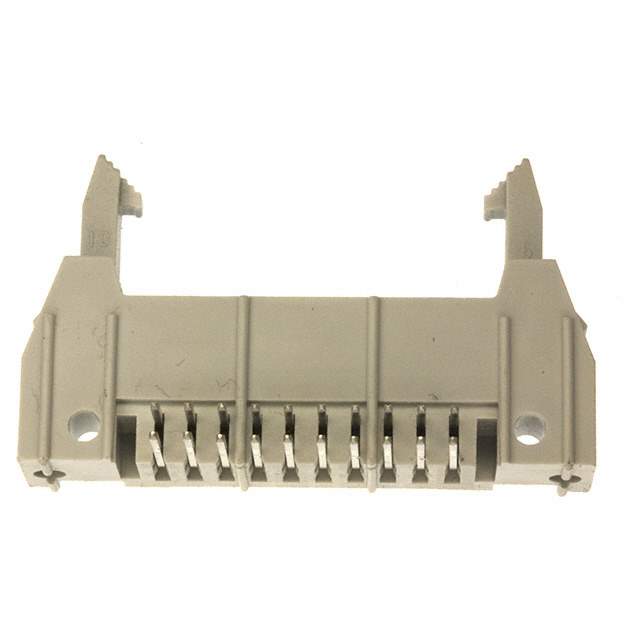

71922-120LF

Part No 71922-120LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER 20POS DUAL R/A PCB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 20
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot, Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Gray
Contact Finish Thickness - Post 78.7μin (2.00μm)
Win Source Part Number 197935-71922-120LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 71922-120LF CAD Model

Description

Overview

The 71922-120LF is a premium electronic component designed to meet a diverse range of applications in modern electronic devices. Renowned for its reliability and superior performance, this component is essential for building efficient and durable electronic systems.

Features and Benefits

  • High precision for enhanced performance
  • Durable construction ensures long-lasting operation
  • Compact design saves space in device assemblies
  • Compatible with a wide range of electronic interfaces

Applications

  • Computer and networking devices
  • Consumer electronics
  • Industrial automation systems
  • Embedded systems projects

With its versatile features and robust design, the 71922-120LF stands out as a go-to choice for engineers and manufacturers aiming for quality and reliability in their electronic projects.
