Same model may have multiple batches, images only for reference.

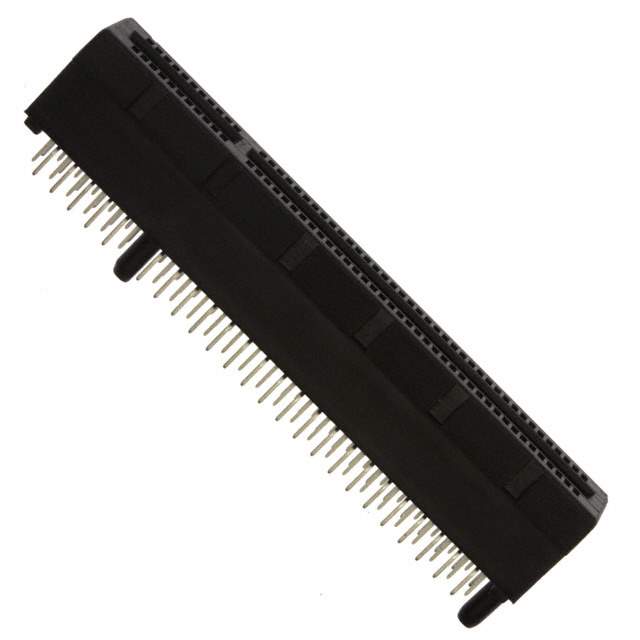

10018783-10202TLF Real Image
Same model may have multiple batches, images only for reference.

10018783-10202TLF

Part No 10018783-10202TLF
Manufacturer Amphenol FCI
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FEMALE 98POS 0.039 / PCI EXPRESS CARD EDGE ASSY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Card Type PCI Express
Gender Female
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide, Locking Ramp
Mounting Style Through Hole
Termination Solder, Staggered
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyamide (PA), Nylon, Glass Filled
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812293-10018783-10202TLF
Ultra Librarian 3D Model Ultra Librarian 10018783-10202TLF CAD Model

Description

The Amphenol ICC (FCI) 812293-10018783-10202TLF is a female card type PCI express connector with 98 positions from Amphenol ICC (FCI).

  • Pitch: 0.039" (1.00mm)
  • Mounting Style: Through-hole
  • Features: Board guide, locking ramp
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Insulation Material: Polyamide (PA), nylon, glass filled
  • Gender: Female
  • Rows: Two
  • Termination: Staggered solder
