Same model may have multiple batches, images only for reference.

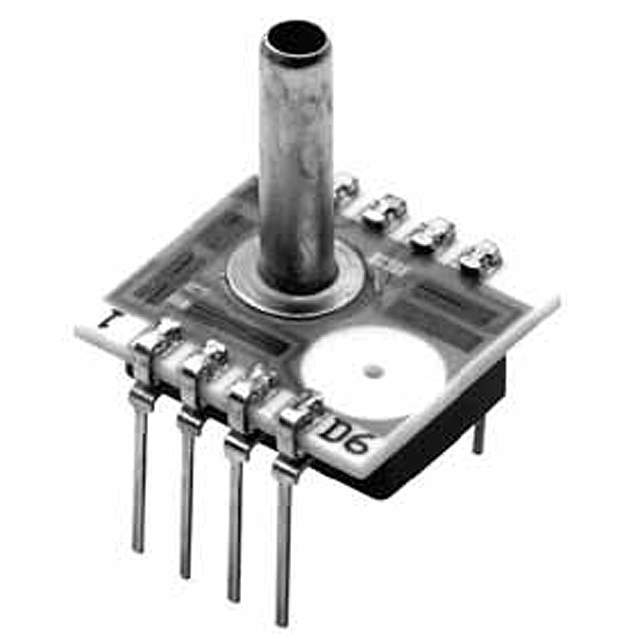

NPC-1210-10WD-3S Real Image
Same model may have multiple batches, images only for reference.

NPC-1210-10WD-3S

Part No NPC-1210-10WD-3S
Manufacturer Amphenol Advanced Sensors
Catalog Pressure Sensors, Transducers
Description Pressure Sensor, PCB Mount, 10in. Water, 0.36psid, Short Tube, 50mV Output, DIP, Down Through
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Accuracy 0.5 %
Case / Package DIP
Lead Free Contains Lead
Max Operating Temperature 125 °C
Max Pressure 5 PSI
Min Operating Temperature -40 °C
Mount PCB
Nominal Supply Current 1.5 mA
Operating Supply Current 1.5 mA
Output Type Wheatstone Bridge
Output Voltage 100 mV
Packaging Bulk
Port Style Barbless
Pressure Type Differential
RoHS Compliant
Termination PC Pin
Win Source Part Number 1123820-NPC-1210-10WD-3S
Categories Pressure Sensors,Transducers
Manufacturer Amphenol Advanced Sensors
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NPC-1210-10WD-3S CAD Model

Description

The Amphenol Advanced Sensors 1123820-NPC-1210-10WD-3S is a differential pressure sensor that has a port style of barbless and an output voltage of 100mV.

  • Output: Wheatstone bridge
  • Accuracy: 0.5%
  • Family: NPC-1210-10WD-3-S
  • Mounting: PCB
  • Package: DIP
  • Operating Temperature Range: -40°C to 125°C
  • Popularity: Medium
  • Packaging: Bulk
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • Contains Lead: Yes
