Same model may have multiple batches, images only for reference.

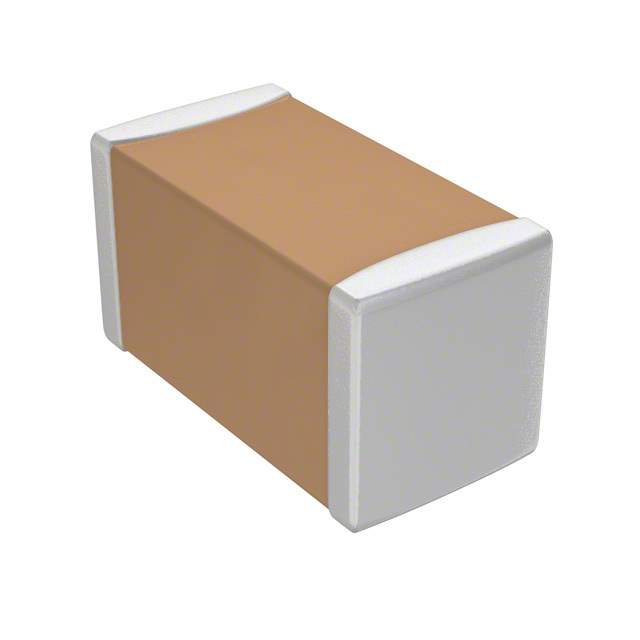

520L103KT16T Real Image
Same model may have multiple batches, images only for reference.

520L103KT16T

Part No 520L103KT16T
Manufacturer American Technical Ceramics
Catalog Ceramic Capacitors
Description CAP CER 10000PF 16V X7R 0402 / 10000 pF ±10% 16V Ceramic Capacitor X7R 0402 (1005 Metric)
Datasheet
520L103KT16T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr American Technical Ceramics
Series ATC 520L
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±10%
Voltage - Rated 16V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss
Applications Bypass, Decoupling
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 1284-1540-6,520L103KT16T/500,1284-1540-1,1284-1540-2,520L103KT16T\\500,ATC520L103KT16T
Standard Package 500
Win Source Part Number 1034254-520L103KT16T
Ultra Librarian 3D Model Ultra Librarian 520L103KT16T CAD Model

Description

The ATC 520L series from American Technical Ceramics is a ceramic capacitor designed for bypass and decoupling applications.

  • Series: 520L
  • Capacitor Type: Ceramic
  • Application: Bypass, Decoupling
  • Model: 520L103KT16T
  • Capacitance: 10000 pF
  • Capacitance Tolerance: ±10%
  • Voltage Rating: 16V
  • Temperature Coefficient: X7R
  • Package/Case: 0402 (1005 Metric)
  • Package: Tape and Reel
  • Standard Package: 500
  • Features: High Q, Low Loss
  • Operating Temperature: -55°C to 125°C
